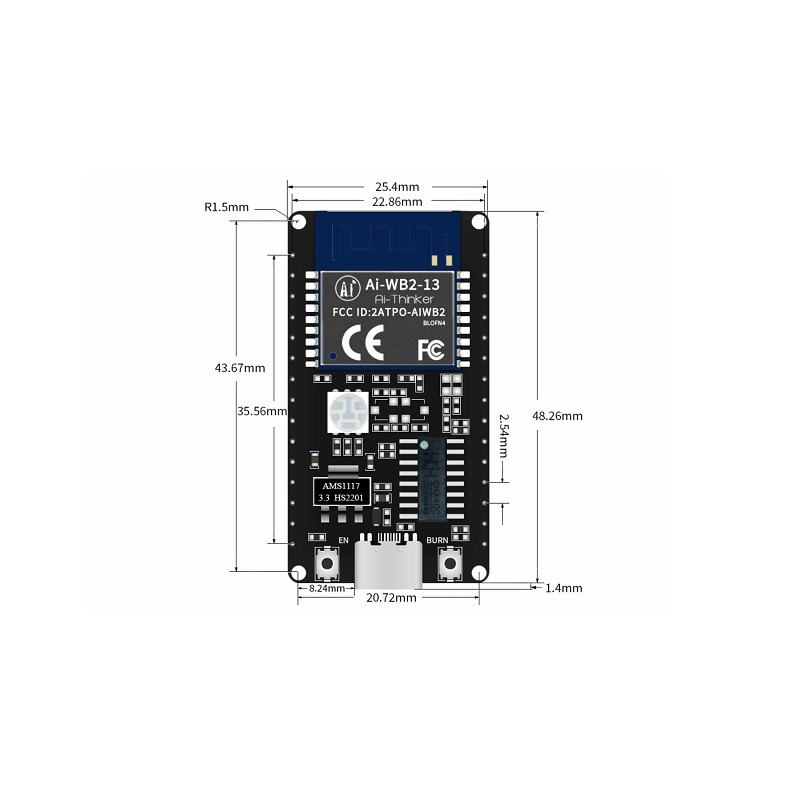

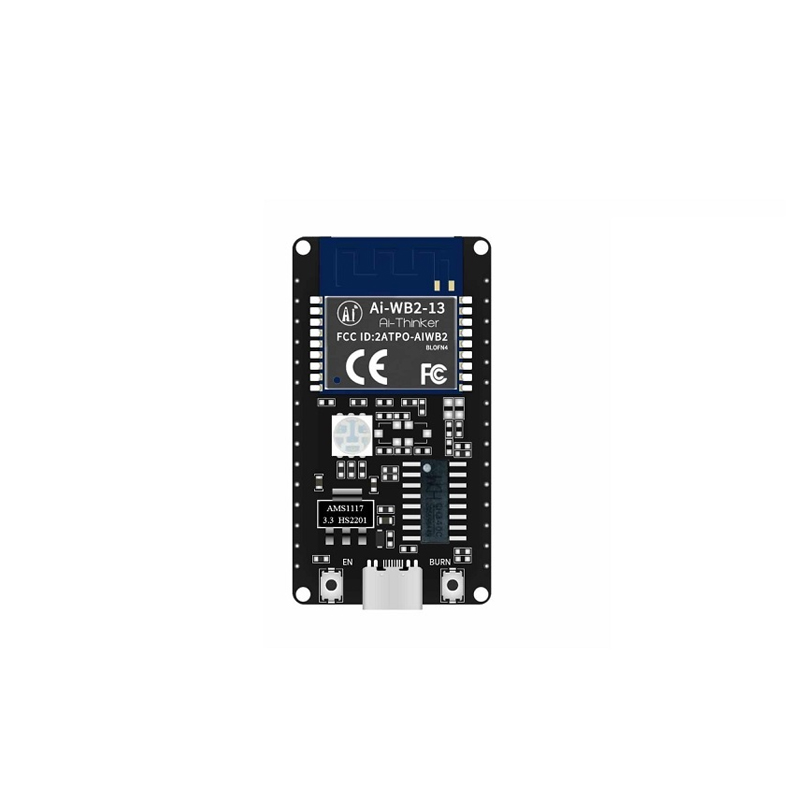

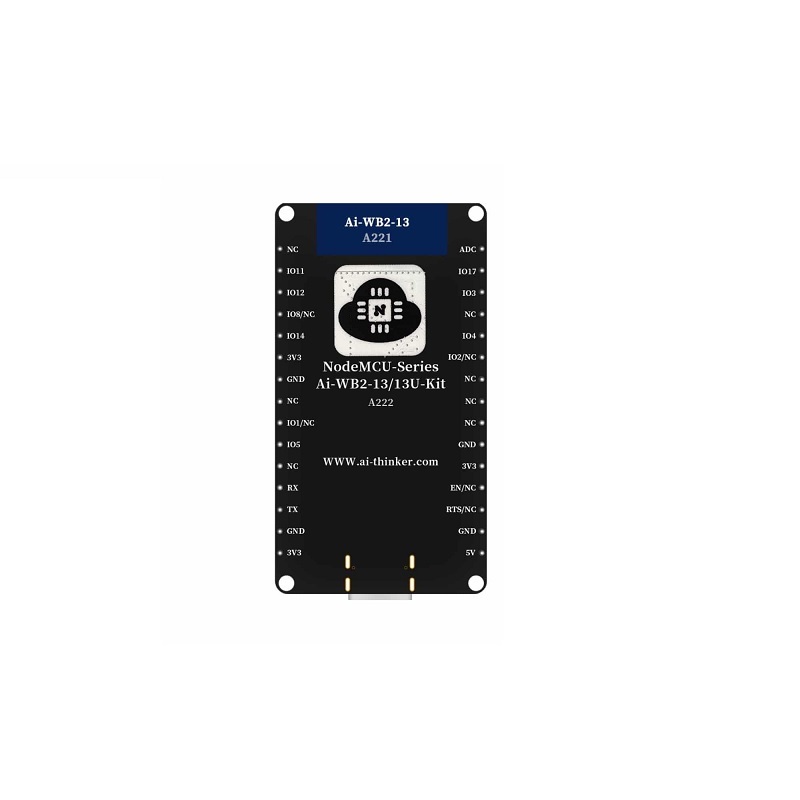

Ai WB2 13 Kit is a development board designed for Ai WB2 13 modules. Ai WB2 13 is a Wi Fi & Bluetooth module developed by Shenzhen Ai Thinker Technology Co., Ltd. The module is equipped with BL602 chip as the core processor and supports Wi Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built in 32 bit RISC CPU with low power consumption, 276KB RAM, and a wide range of peripheral interfaces, including SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields

Features:

1. DIP 30 package
2. Supports IEEE 802.11 B/g/n protocol
3. Wi Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
4. Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps
5. Bluetooth BLE 5.0, Bluetooth Mesh
6. Supports Station + BLE mode, Station + SoftAP + BLE mode
7. Supports 32 bit RISC CPU and 276KB RAM.
8. Secure Startup. Images with ECC 256 signatures are supported.
9. Supports real time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES 128 CTR mode
10. Supports AES 128, 192, and 256 bit encryption engines
11. Supports SHA 1/224/256
12. Real random number generator (TRNG)
13. The public key accelerator (PKA) supports large numbers of basic operations. The software provides application interfaces such as signature and verification
14. Supports SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO
15. Integrated Wi Fi MAC/BB/RF/PA/LNA/Bluetooth
16. Supports multiple sleep modes with a deep sleep current of 12μA
17. Quick Start of universal AT commands
18. Supports secondary development and integrates Windows and Linux development environments

Package Includes:

1 x Ai-Thinker Ai-WB2-13 Kit
