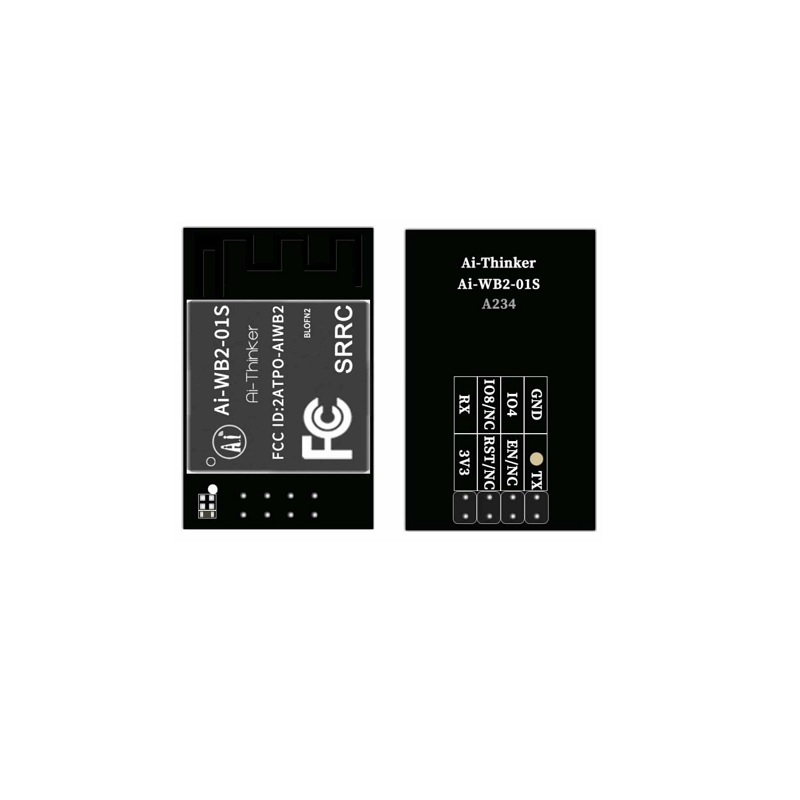

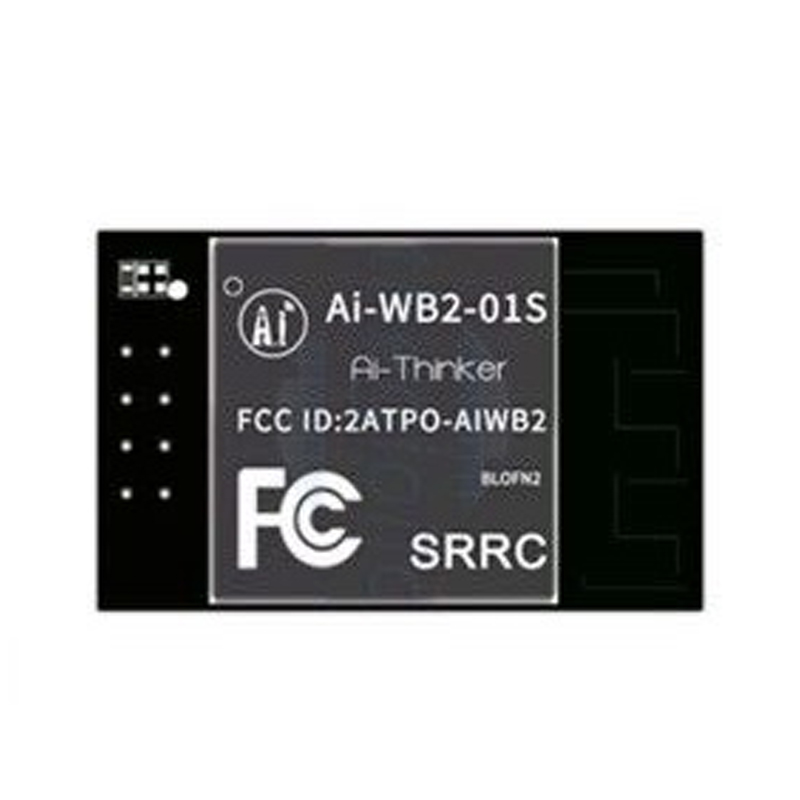

Ai-WB2-01S is a Wi-Fi & BLE module developed by Shenzhen Ai-Thinker Technology Co., Ltd. This module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption and 276KB RAM. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Features:

1. DIP-8 package
2. Supports IEEE 802.11 B/g/n protocol
3. Wi-Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
4. Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps.
5. Bluetooth 5.0, Bluetooth Mesh
6. Supports Station + BLE mode, Station + SoftAP + BLE mode
7. Supports 32-bit RISC CPU and 276KB RAM
8. Secure Startup supports Images with ECC-256 signatures
9. Supports real-time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES
   128 CTR mode
10. Supports AES 128, 192, and 256-bit encryption engines
11. Supports SHA-1/224/256
12. Support True Random Number Generator (TRNG)
13. Public Key Accelerator (PKA), supports a large number of basic operations, and software provides
    a signature, verification, and other application program interface

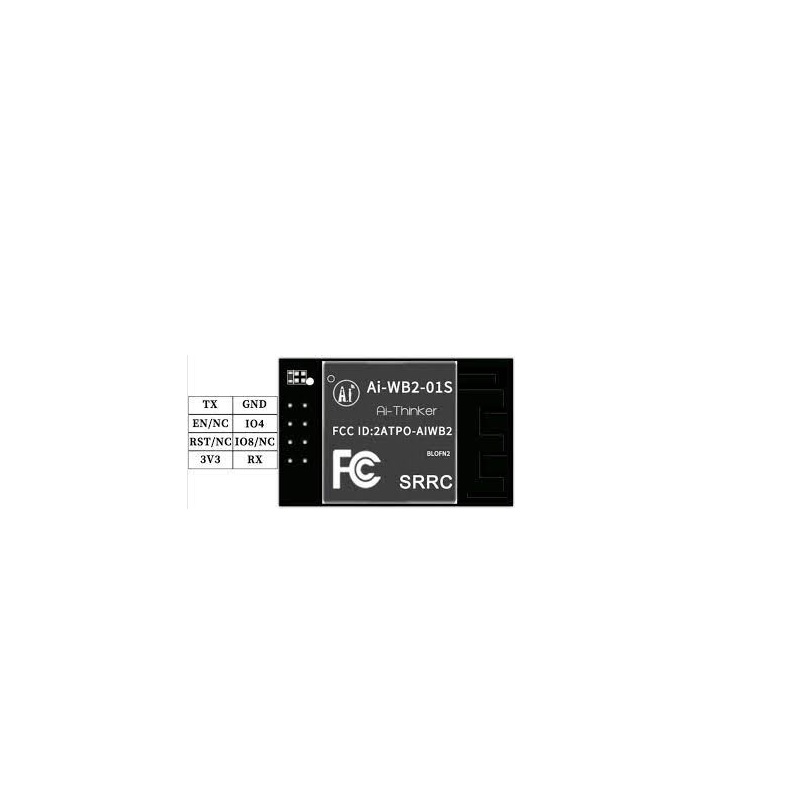

14. Supports UART, PWM,ADC, and GPIO
15. Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
16. Supports multiple sleep modes with a deep sleep current of 12μA
17. Universal AT instruction for a quick start
18. Supports secondary development and integrates Windows and Linux development
    environments

Package Includes:

1 x Ai-Thinker Ai-WB2-01S Module
