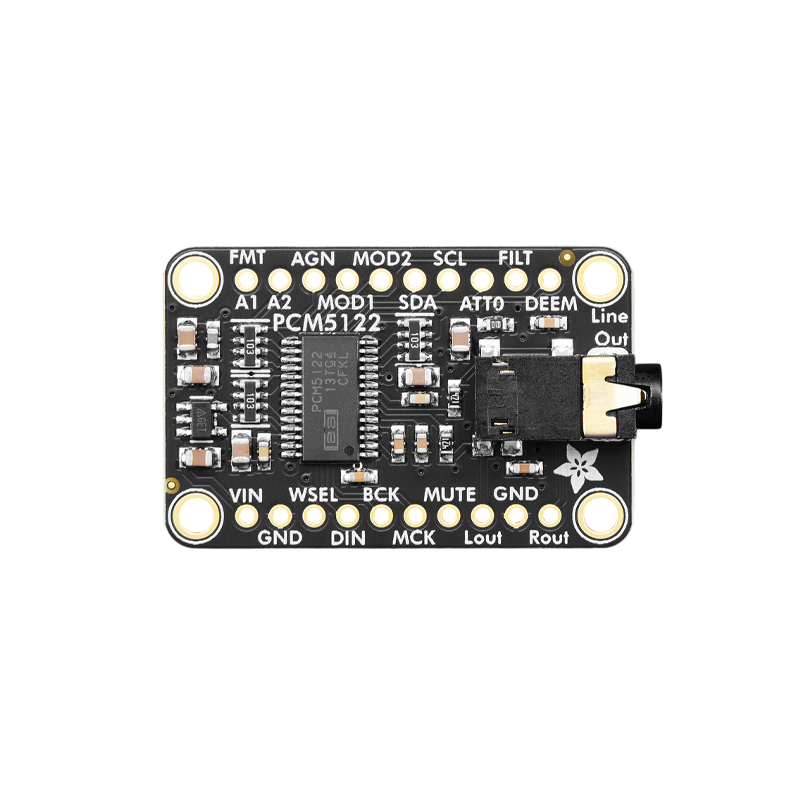

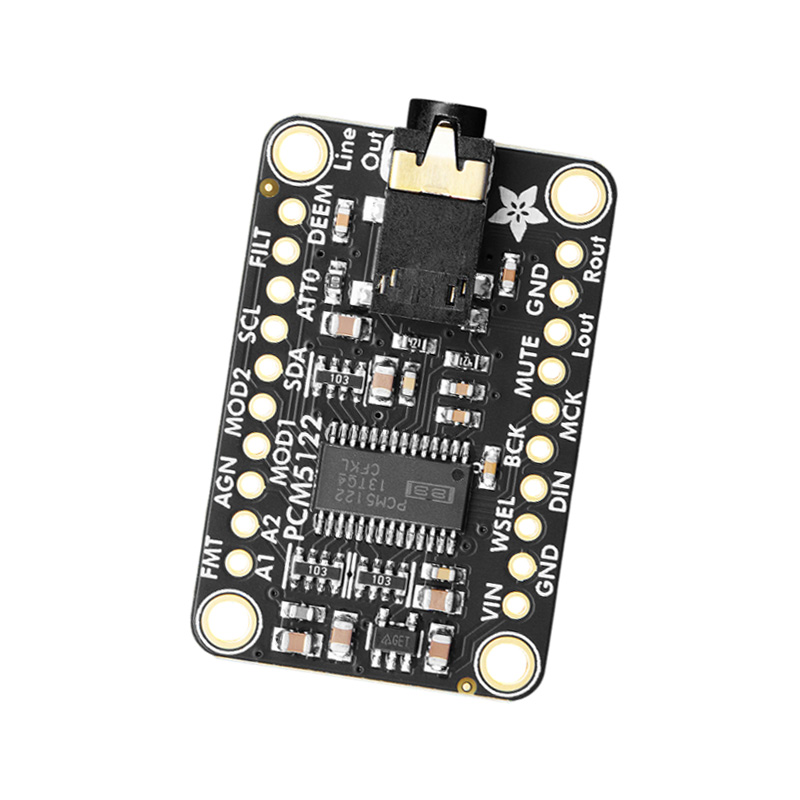

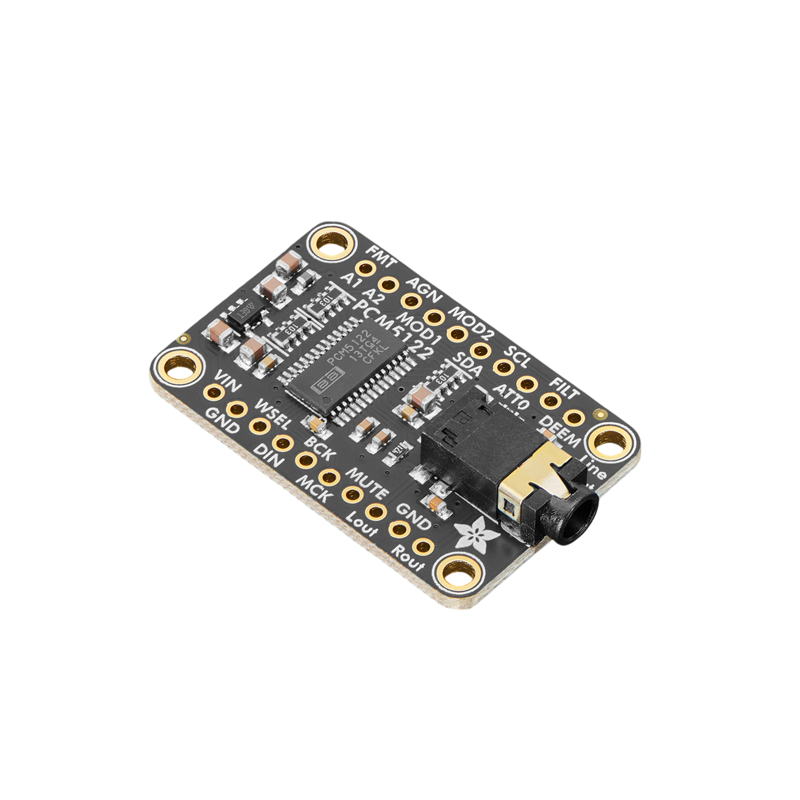

The Adafruit PCM5122 I2S DAC is a high-performance stereo digital-to-analog converter designed for clean and accurate line-level audio output. It easily converts I2S digital audio from boards like ESP32, RP2350, or Raspberry Pi into high-quality analog sound. In default hardware mode, it works instantly without needing MCLK, I2C, or SPI configuration—simply provide I2S signals and power, and it just works.

For advanced users, the DAC also supports I2C or SPI control, enabling digital volume control, mute, EQ, filtering, and de-emphasis. With an impressive 112dB dynamic range and –93dB THD+N, it delivers excellent audio clarity. The onboard 3.5mm jack and breakout pads provide flexible line-level output for audio systems and embedded projects.

Features:

1. High-quality stereo I2S DAC based on PCM5122
2. Hardware mode works without MCLK or configuration
3. Supports I2S, Left-Justified, Right-Justified, and DSP formats
4. Optional I2C or SPI control for advanced audio processing
5. 112dB signal-to-noise and dynamic range
6. –93dB THD+N for clean audio output

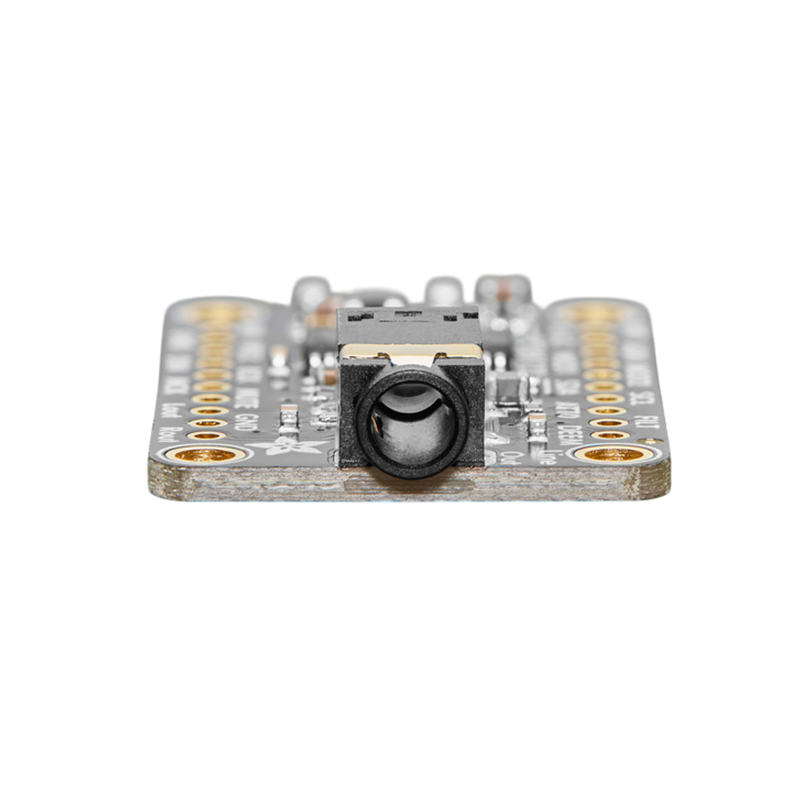

7. Line-level output via 3.5mm jack or breakout pads
8. Accepts 16-, 24-, and 32-bit audio data automatically

Package Includes:

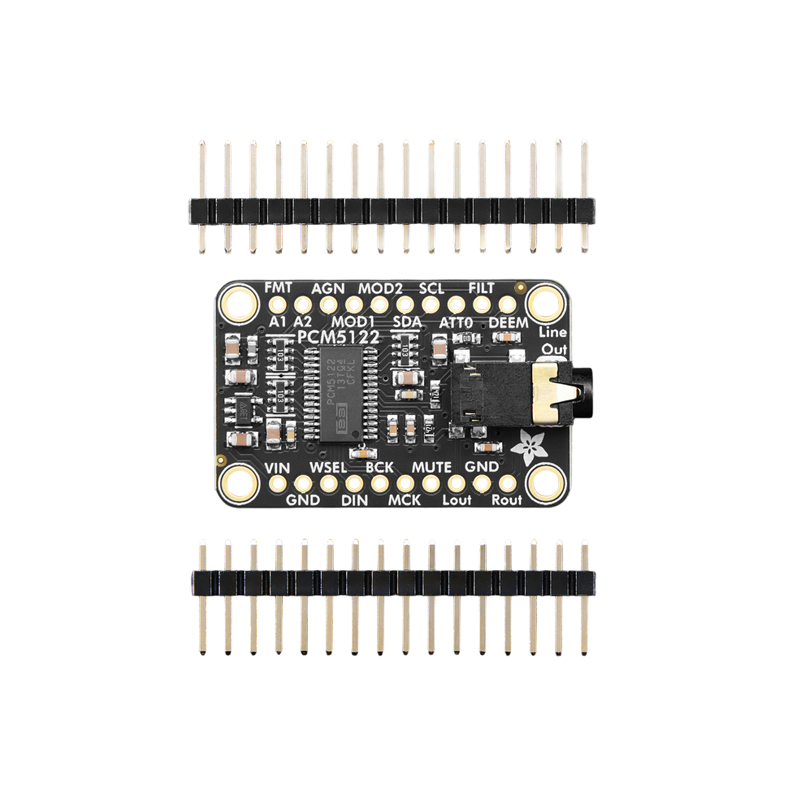

1 x Adafruit PCM5122 I2S DAC with Line Level Output – HW, I2C or SPI

2 x Header Pin
