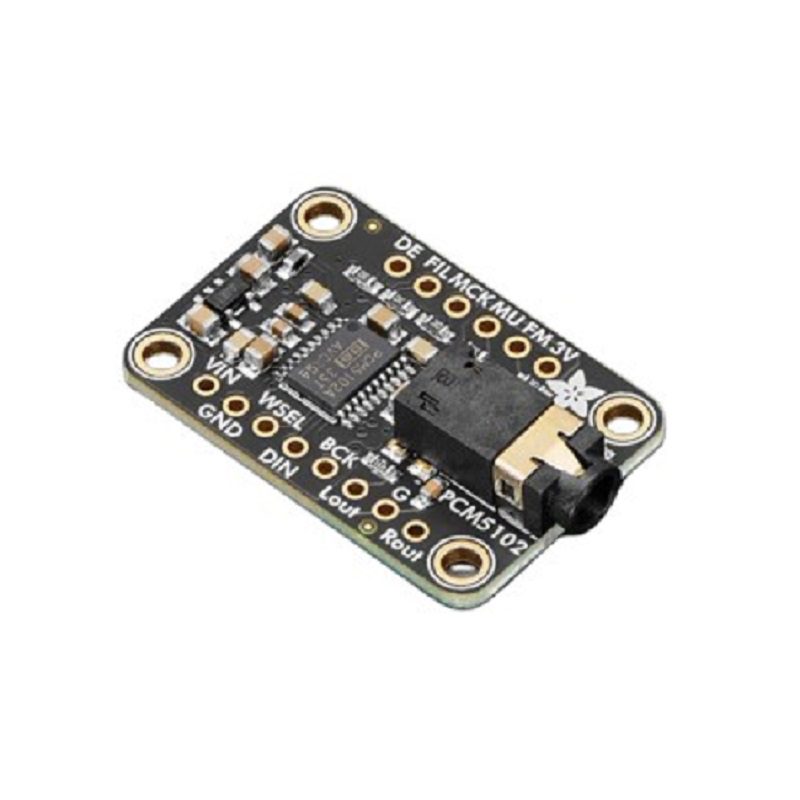

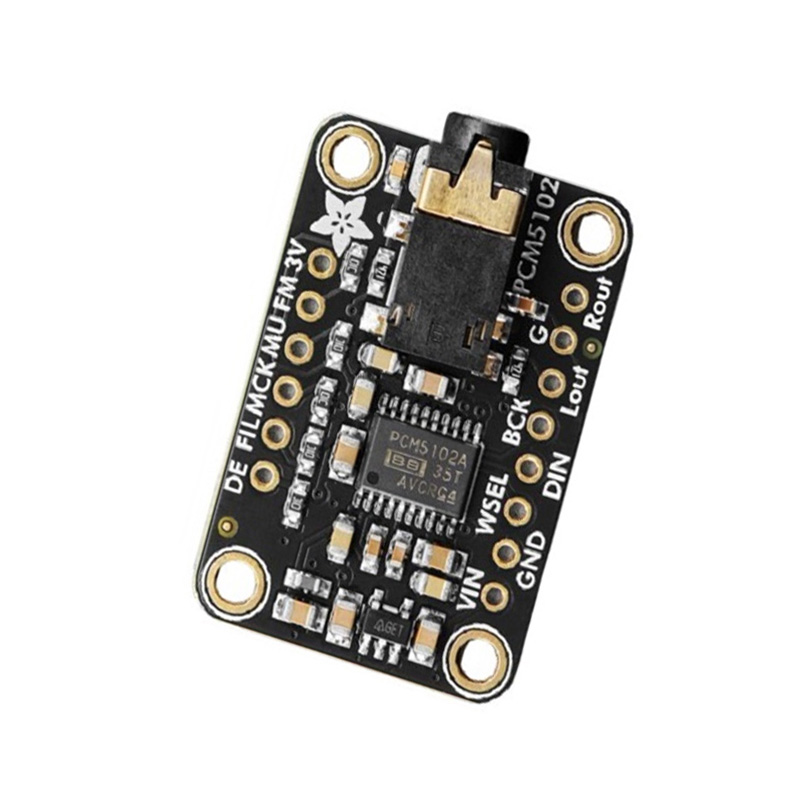

The PCM510x series includes the PCM5100 with a 100dB signal-to-noise ratio and the PCM5102 with 112dB, both pin-compatible and great for various applications. This PCM5102 I2S DAC breakout simplifies I2S digital audio by requiring just 3~5VDC and BCLK, WSEL, and DIN signals. PCM5102 I2S DAC supports 16, 24, or 32-bit audio and auto-generates the MCLK. Additional pads allow for filtering, muting, and de-emphasis. The output is line-level, not AC-coupled, and designed for 1K ohm loads or higher, making it unsuitable for headphones. The order includes a breakout board and headers for breadboard use.

Features:

1. Market-Leading Low Out-of-Band Noise
2. Selectable Digital-Filter Latency and Performance
3. Accepts 16-, 24-, And 32-Bit Audio Data
4. Sampling Frequency 8kHz to 384kHz
5. PCM Data Formats: I2S, Left-Justified
6. Full Scale Output 2.1VRMS (GND center)
7. Integrated Power-On Reset
8. Automatic Power-Save Mode When LRCK And BCK Are Deactivated.
9. Integrated High-Performance Audio PLL With BCK Reference To Generate SCK Internally
10. 3.3V Failsafe LVCMOS Digital Inputs
11. Hardware Configuration
12. Integrated Negative Charge Pump
13. Internal Pop-Free Control For Sample-Rate Changes Or Clock Halts
14. SNR / Dynamic Range: 112dB
15. THD+N @ – 1dBFS: -93dB

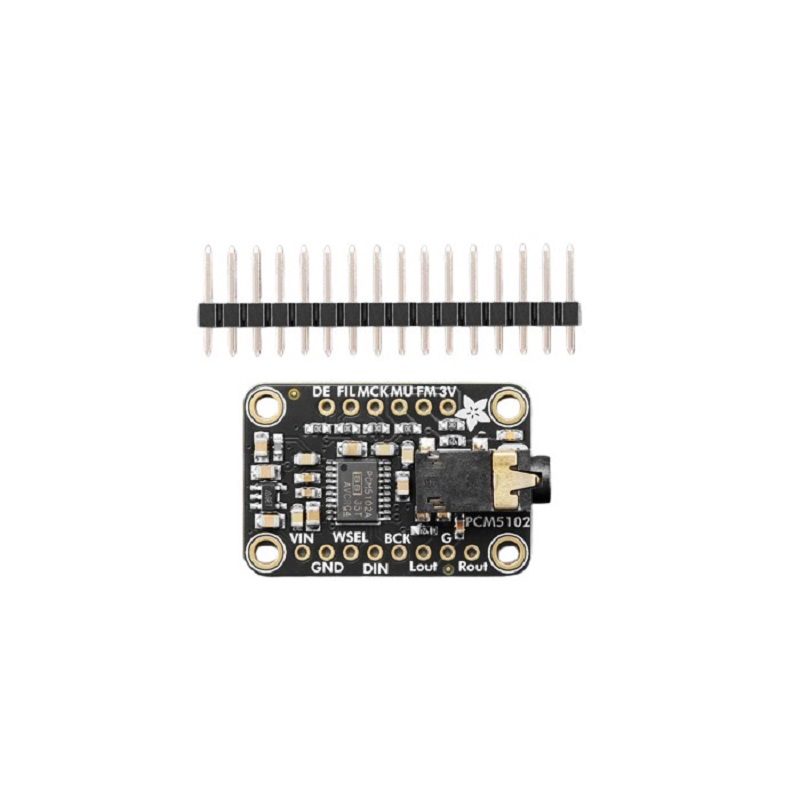

Package Includes:

1 x Adafruit PCM5102 I2S DAC with Line Level Output
