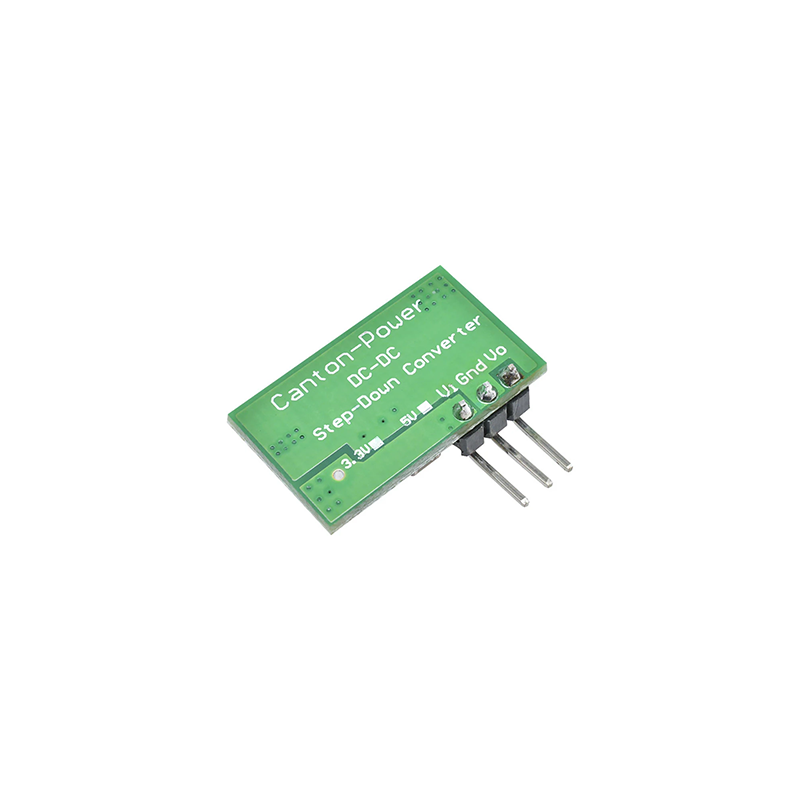

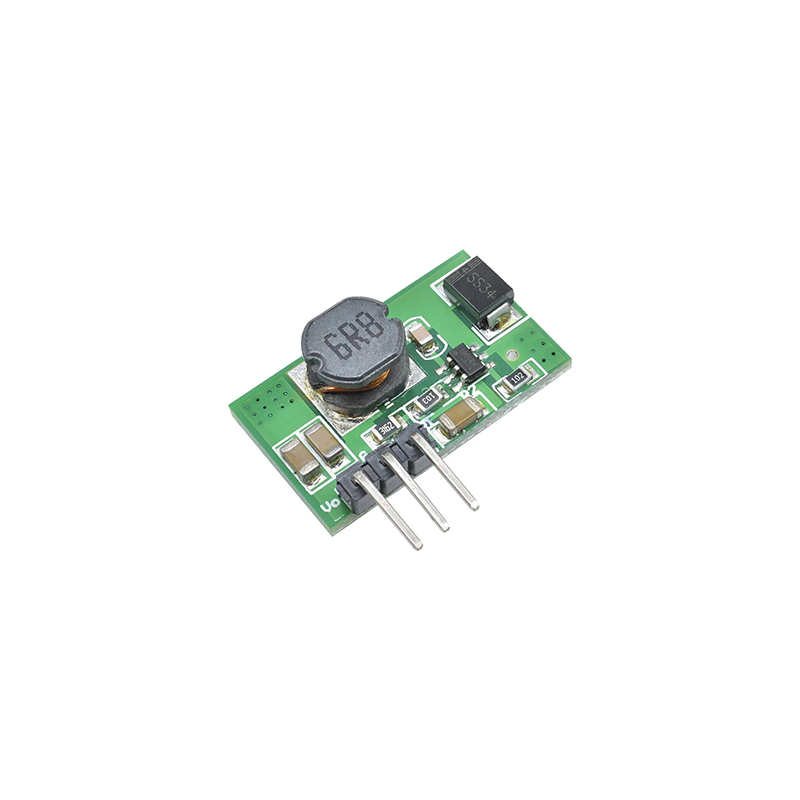

2A DC5-23V to 5V Buck Power Conversion Module with Soldering
- Input Voltage: 4.75V – 23V DC
- Output Voltage: 5V DC
- Long-Term Output Current: 1.3A
- Peak Output Current: 2A
- Switching Frequency: 1.4MHz
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 2A DC5-23V to 5V Buck Power Conversion Module is a compact and efficient DC-DC step-down converter designed for stable 5V output applications. Operating at 1.4MHz switching frequency, it delivers reliable performance with efficiency ranging from 78% to 91%. The module supports a long-term output current of up to 1.3A and short-term peak output up to 2A, making it suitable for development boards, wireless modules, and embedded systems.
With a small footprint of 22.5mm × 13.5mm × 6.5mm and lightweight 2.2g design, it easily fits into compact circuits. Featuring a 2.54mm pin pitch, it is fully compatible with Arduino, breadboards, and MCU platforms. This buck converter is ideal for powering 5V electronics from higher DC voltage sources efficiently and safely.
Features:
- Wide input voltage range: 4.75V to 23V
- Stable 5V DC output
- Long-term output current up to 1.3A
- Short-term peak current up to 2A
- High efficiency: 78%–91%
- 1.4MHz switching frequency
- 2.54mm pin pitch (breadboard friendly)
Package Includes:
1 x 2A DC5-23V to 5V Buck Power Conversion Module with Soldering
Technical Specifications
| Frequency (MHz) | 1.4 (Switching Frequency) |
|---|---|
| Height (mm) | 6.5 |
| Input Voltage (V) | 4.75V – 23V DC |
| Length (mm) | 22.5 |
| Module Type | DC-DC Step-Down (Buck) Converter |
| Mounting | Through-Hole |
| Output Current (A) | 1.3 |
| Output Voltage (V) | 5V DC |
| Shipping Dimensions | 8 × 6 × 2 cm |
| Shipping Weight | 0.004 kg |
| Weight (g) | 03 |
| Width (mm) | 13.5 |
