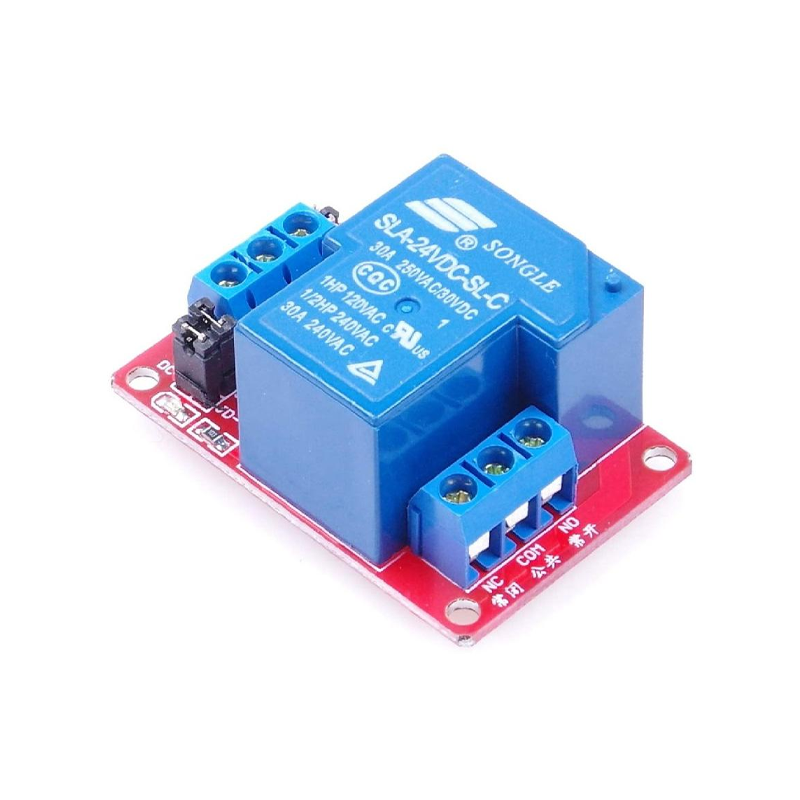

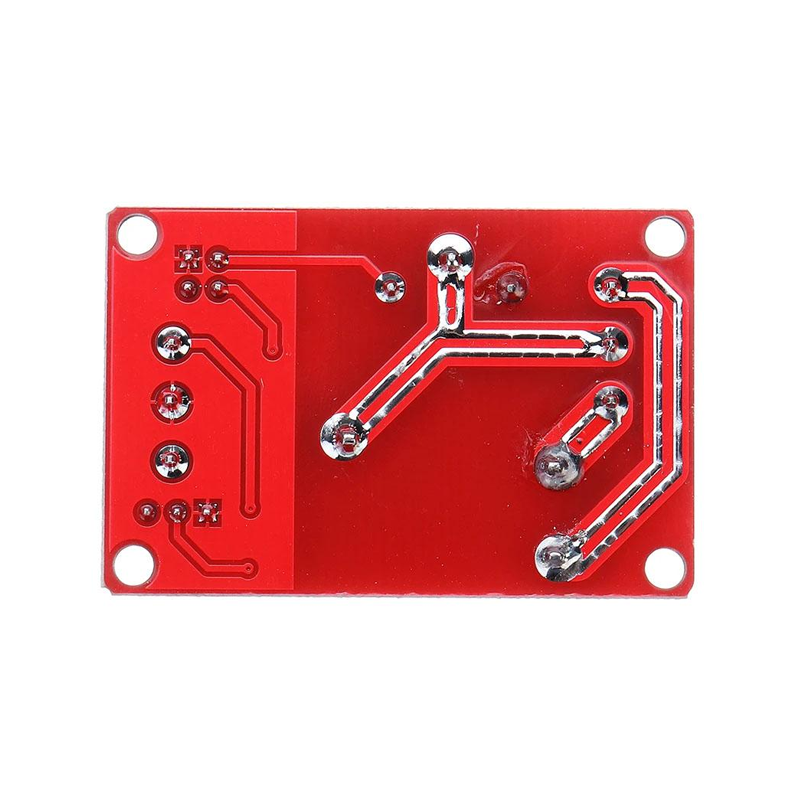

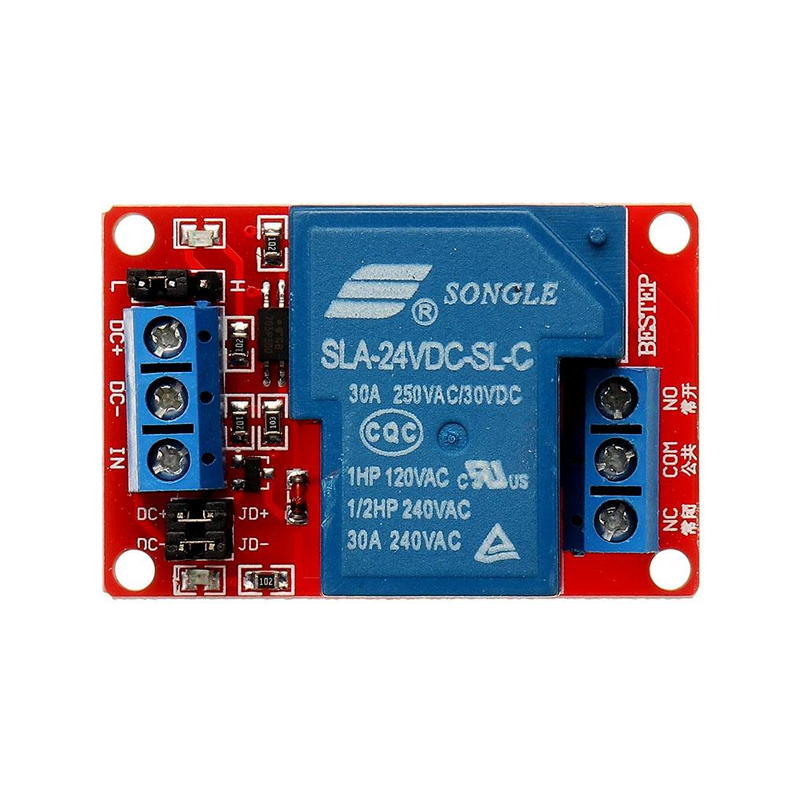

Songle Single-channel 24V 30A Relay Module Power Failure Relay
- Operating Voltage: 24V
- Maximum Current: 30A
- Working Current: 190mA
- Trigger Current: 2–4mA
SKU: Not Found
Brand: Songle
Out of stock
₹188.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Songle Single-Channel 24V 30A Relay Module is a compact and reliable power failure relay designed for high-current switching applications. Operating at 24V, it supports AC loads up to 250V @30A and DC loads up to 30V @30A. The module features LED indicators for status monitoring and can be interfaced with various microcontrollers. With low quiescent current (5mA) and trigger current (2–4mA), it ensures efficient operation. Its compact 50×33×24mm design with fixed mounting holes makes it ideal for industrial control panels, automation systems, and DIY electronics projects.
Features:
- 24V operating voltage
- Supports up to 30A load current
- AC load: 250V @30A
- DC load: 30V @30A
- Low quiescent current: 5mA
- Trigger current: 2–4mA
- LED status indicator
- Compact size with 4 mounting holes
Package Includes:
1 x Songle Single-channel 24V 30A Relay Module Power Failure Relay
Technical Specifications
| AC Load Voltage | 250V @30A |
|---|---|
| Current Rating | 30A |
| DC Voltage (V) | 30V @30A(load) |
| Height (mm) | 20 |
| Length (mm) | 48 |
| Model | 24V 30A Relay Module |
| No. of Channels | 1 Channel |
| Operating Voltage (VDC) | 24V |
| Quiescent Current | 5mA |
| Shipping Dimensions | 14 × 6 × 4 cm |
| Shipping Weight | 0.038 kg |
| Trigger Current (mA) | 2–4mA |
| Weight (g) | 34 |
| Width (mm) | 32 |
| Working Current (A) | 190mA |
