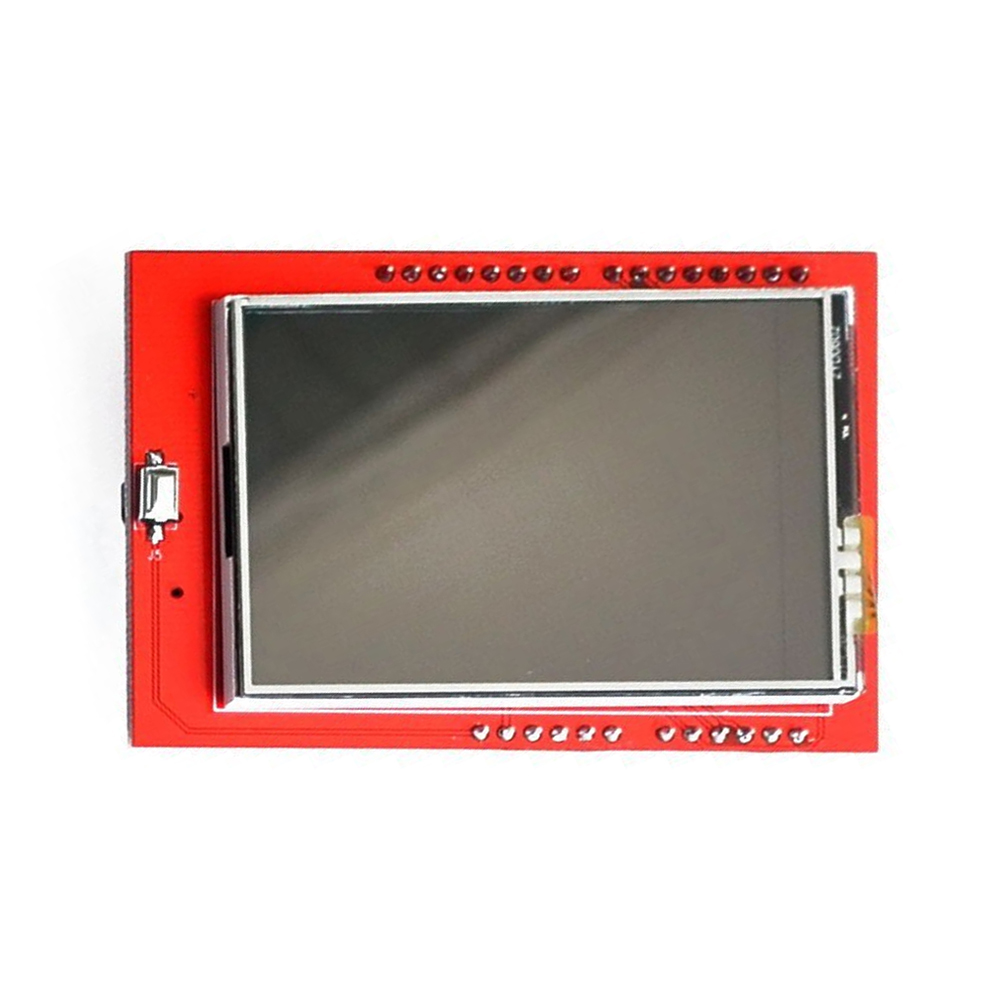

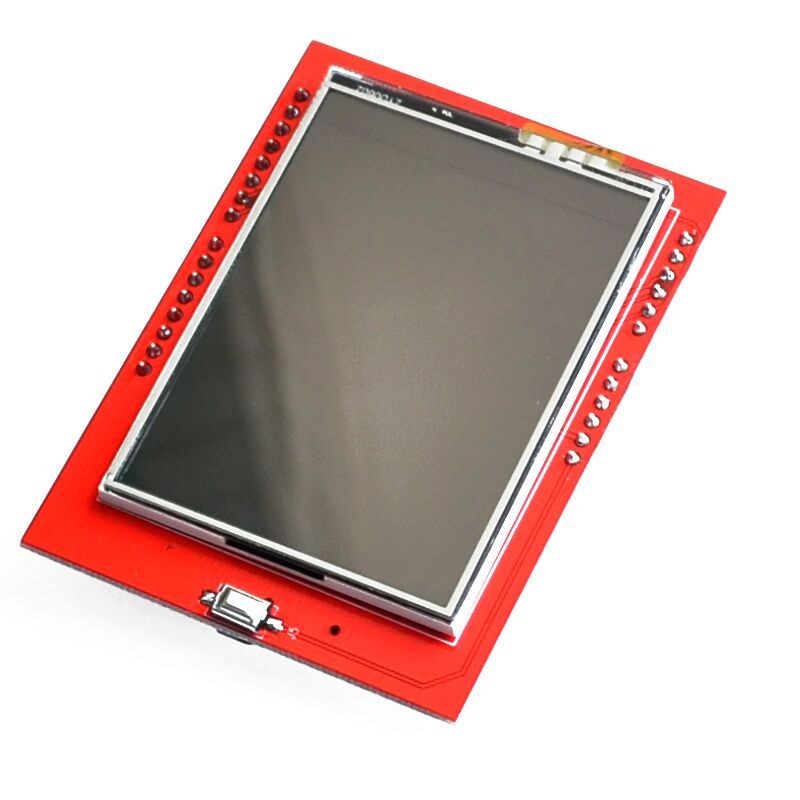

The 2.4 Inch Touch Screen TFT Display Shield is a versatile and easy-to-use display module designed for Arduino UNO, Mega, and compatible development boards. Featuring a bright 2.4-inch TFT LCD with full-color support and resistive touch functionality, it enables interactive projects with graphical interfaces, menu systems, and real-time data visualization. The shield integrates seamlessly with Arduino boards via the standard shield interface, eliminating the need for complex wiring.

With its 320×240 pixel resolution, the 2.4 Inch Touch Screen TFT Display Shield offers clear and vibrant visuals for applications like DIY gadgets, control panels, and embedded systems. It supports both display and touch input, making it ideal for creating touch-based user interfaces. Whether you’re building a beginner project or an advanced Arduino-based system, this shield provides a compact and reliable solution for integrating interactive displays into your designs.

Features:

1. 2.4″ diagonal Touch LCD TFT display
2. 240×320 resolution, 18-bit (262,000) color
3. 8-bit digital interface, plus 4 control lines
4. 5V compatible! Use with 3.3V or 5V logic
5. Onboard 3.3V 300mA LDO regulator
6. Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
7. Works with any Arduino Uno and mega compatible boards

Package Includes:

1 x 2.4″ Inch Touch Screen TFT Display Shield for Arduino UNO Mega

1 x Stylus Pen
