Film Resistors

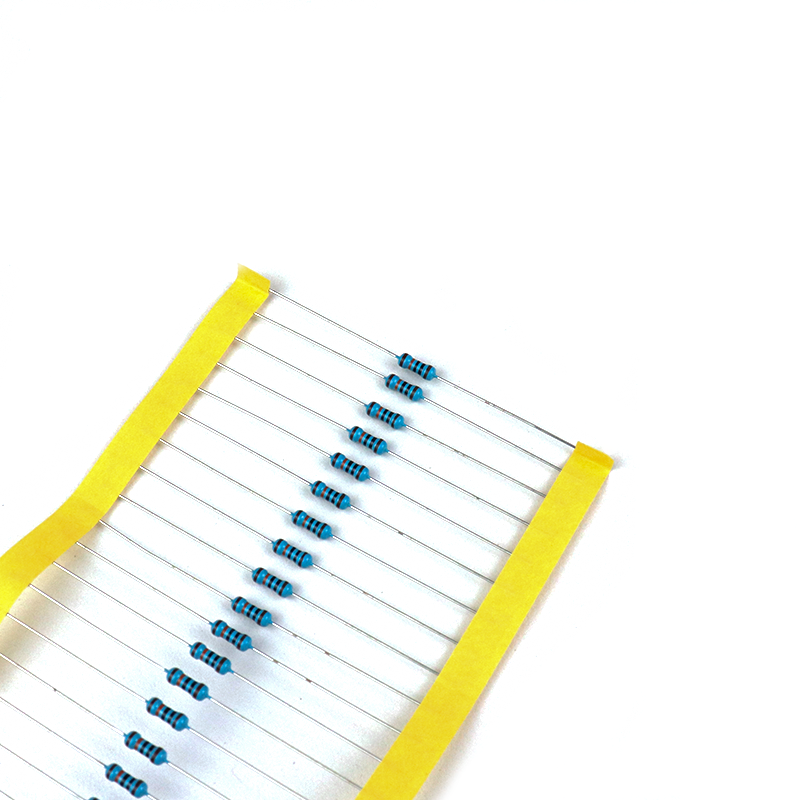

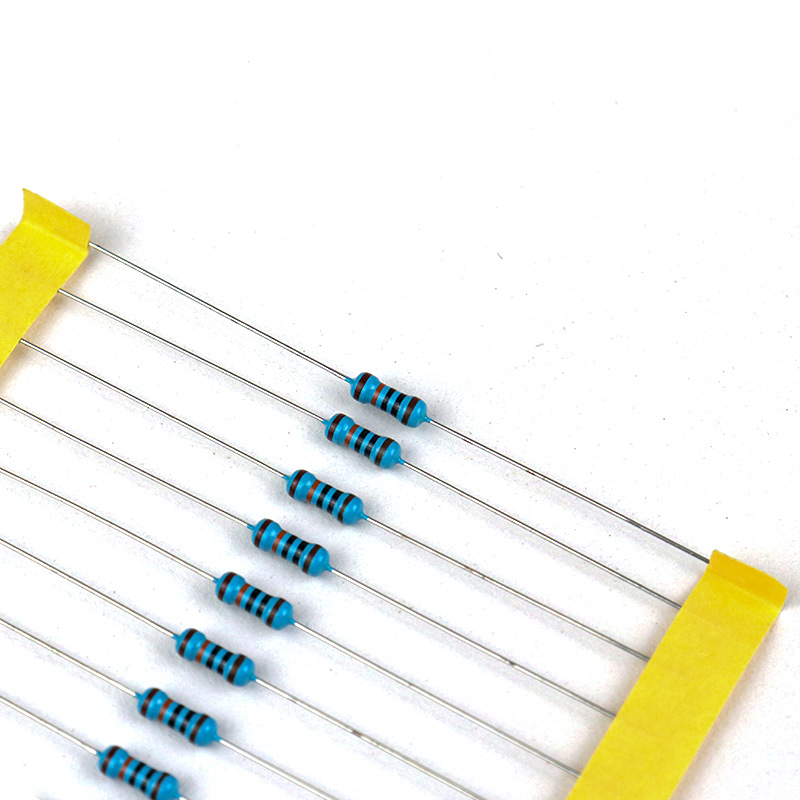

100k Ohm 0.5W Metal Film Resistor
- Resistance: 100k Ohm
- Max. Working Voltage: 350 V
- Tolerance: 1%
- Temperature Coefficient of Resistance: 50 PPM/°C
- Operating Temperature Range: -40ºC to 125ºC
SKU: Not Found
Brand: Generic
Out of stock
₹0.98
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
These are 0.5 W Metal Film 100K Resistor for through-hole applications. The manufacturing of these WMF series Metal Film Resistors is using the latest Magnetron Vacuum Sputtering System. The insulation of these resistors is with layers of lacquer ensuring a very stable resistive medium having a very low-temperature coefficient.
Package Includes:
1 x 0.5w Metal Film 100K ohm Resistor.
Technical Specifications
| Case/Package | Axial |
|---|---|
| Composition | Metal Film |
| Length (mm) | 9 |
| Manufacturer | Generic |
| Mounting Type | Through Hole |
| Operating Temperature (°C) | -40 ~ 150 |
| Power Rating | 500mW |
| Resistance (Ohm) | 100k |
| Series | – |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Temperature Coefficient | +/-50ppm/°C |
| Tolerance (%) | 1 |
