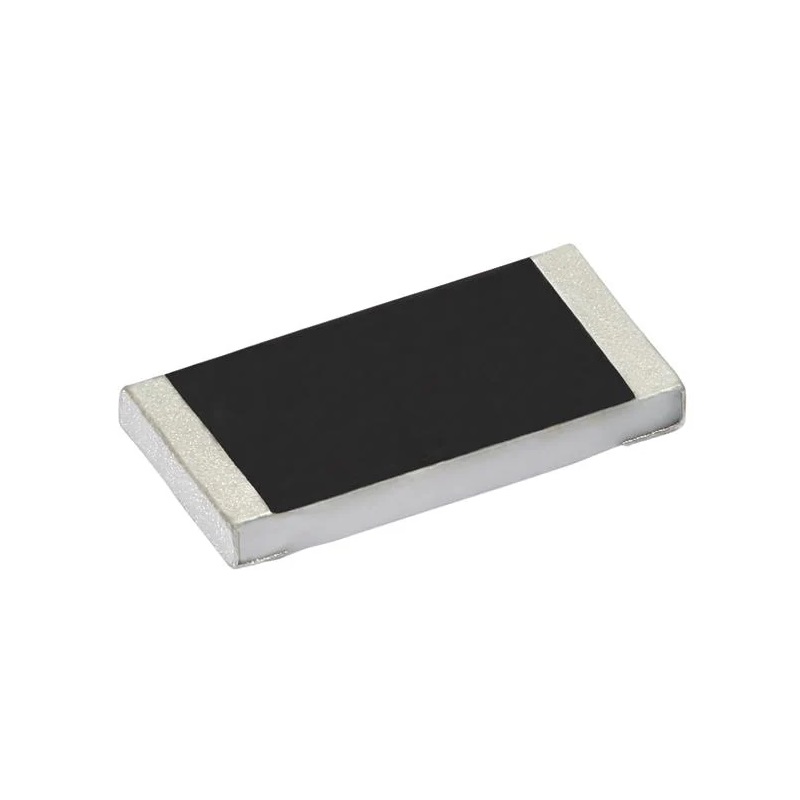

0805W8J0475T5E-Uniohm/Royal-ohm-125mW Thick Film Resistors 150V ±100ppm/℃±5% 4.7MΩ 0805 Chip Resistor – Surface Mount ROHS
- MPN: 0805W8J0475T5E
- Brand: UNI-ROYAL(Uniroyal Elec)
- MOQ:5000/Full Reel
- Packaging Type:Cut Tape
SKU: Not Found
Brand: Uniohm/Royal-ohm
Out of stock
₹0.07
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
0805W8J0475T5E-Uniohm/Royal-ohm-125mW Thick Film Resistors 150V ±100ppm/℃±5% 4.7MΩ 0805 Chip Resistor – Surface Mount ROHS.125mW Thick Film Resistors 150V ±100ppm/℃ ±5% 4.7MΩ 0805 Chip Resistor – Surface Mount ROHS
Note: Images for reference only. For more technical information, please refer to datasheet in Attachments.
Specifications:
Power(Watts): 125mW
Type: Thick Film Resistors
Overload Voltage (Max): 150V
Temperature Coefficient: ±100ppm/℃
Tolerance: ±5%
Operating Temperature Range: -55℃~+155℃
Resistance: 4.7MΩ
Package Includes:
1 x 0805W8J0475T5E-Uniohm/Royal-ohm-125mW Thick Film Resistors 150V ±100ppm/℃±5% 4.7MΩ 0805 Chip Resistor – Surface Mount ROHS
Technical Specifications
| Case/Package | :0805 |
|---|---|
| Composition | Thick Film |
| Length (mm) | 2 |
| Manufacturer | Uniohm/Royal-ohm |
| Operating Temperature (°C) | -55 ~ 155 |
| Power Rating | 125mW |
| Resistance (Ohm) | 4.7M |
| Series | W8 |
| Temperature Coefficient | +/-100ppm/°C |
| Tolerance (%) | 5 |
| Width (mm) | 1.25 |
