ARM Microcontrollers IC

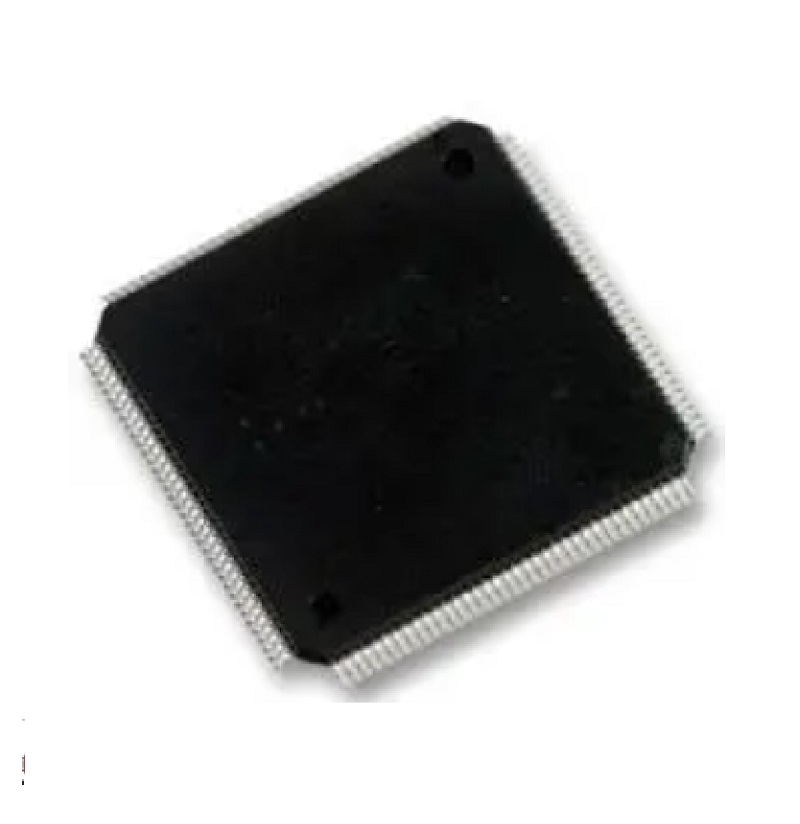

ARM MCU, Synergy Family, S7 Series, S7G2 Group Microcontrollers, ARM Cortex-M4, 32bit, 240 MHz
- MCU Family: Synergy
- MCU Series: S7 Series
- Data Bus Width: 32-bit
- No.of Pins: 144Pins
SKU: Not Found
Brand: Unknown Brand
Out of stock
₹2649.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The MCU integrates multiple series of software- and pin-compatible Arm®-based 32-bit cores that share a common set of Renesas peripherals to facilitate design scalability and efficient platform-based product development. The MCU in this series incorporates a high-performance Arm Cortex®-M4 core running up to 240 MHz.
Features:
- Up to 4 MB code flash memory
- 640 KB SRAM
- Graphics LCD Controller (GLCDC)
- 2D Drawing Engine (DRW)
- Capacitive Touch Sensing Unit (CTSU)
- Ethernet MAC Controller (ETHERC) with IEEE 1588 PTP, USBFS, USBHS, SD/MMC Host Interface
- Quad Serial Peripheral Interface (QSPI)
- Security and safety features
- Analog peripherals
Package Includes:
1 x ARM MCU, Synergy Family, S7 Series, S7G2 Group Microcontrollers, ARM Cortex-M4, 32bit, 240 MHz
Technical Specifications
| ADC Channels | 19Channels |
|---|---|
| ADC Resolution | 12Bit |
| Case/Package | LQFP |
| Data Bus Width | 32bit |
| Device Core | ARM Cortex-M4 |
| Frequency Rating | 240MHz |
| IC Mounting | Surface Mount |
| Interface Type | CAN, Ethernet, I2C, SPI, UART, USB |
| Manufacturer | Generic |
| Max. Supply Voltage (V) | 3.6V |
| MCU Family | Synergy |
| MCU Series | S7 Series |
| Min Supply Voltage | 2.7V |
| No. of Pins | 144Pins |
| Operating Frequency Max | 240MHz |
| Operating Temperature (°C) | -40°C |
| Operating Temperature Max | 105°C |
| Product Range | Synergy Family, S7 Series, S7G2 Group Microcontrollers |
| RAM Capacity | 640KB |
| Shipping Dimensions | 6 × 5 × 1 cm |
| Shipping Weight | 0.007 kg |
