Waveshare Dedicated All-In-One Aluminum Alloy Cooling Fan For Raspberry Pi 4B, PWM Speed Adjustment, Better Cooling
- fan supports PWM speed regulation
- Lightweight and silent
- Good heat dissipation effect
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹1107.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

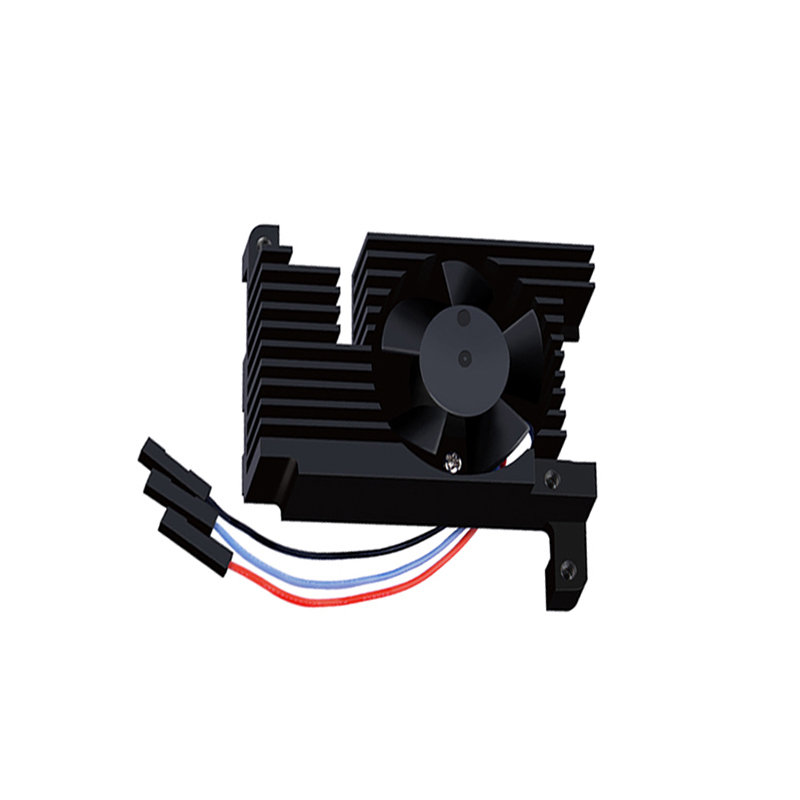

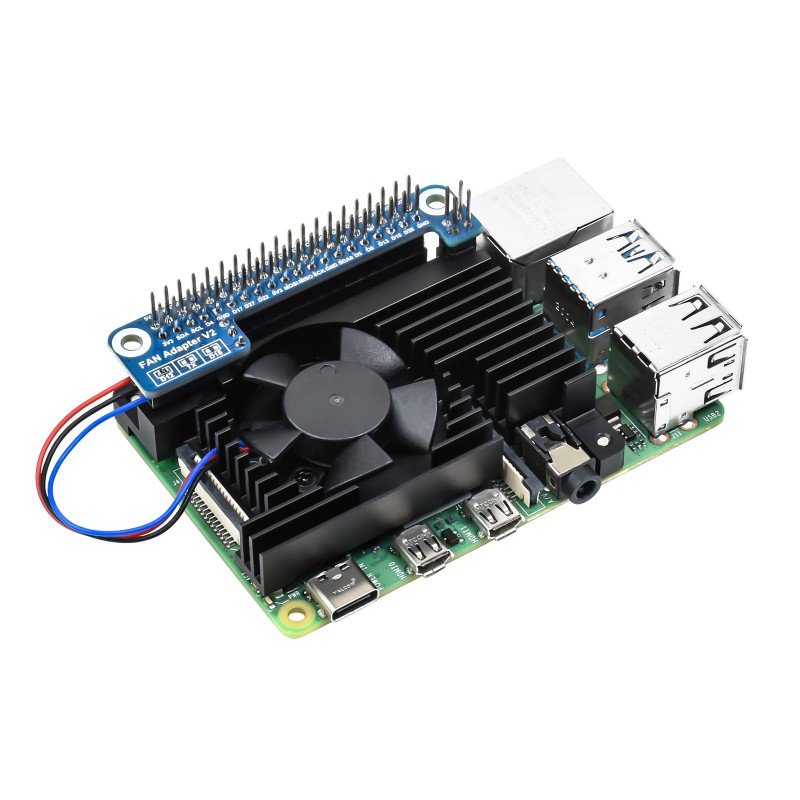

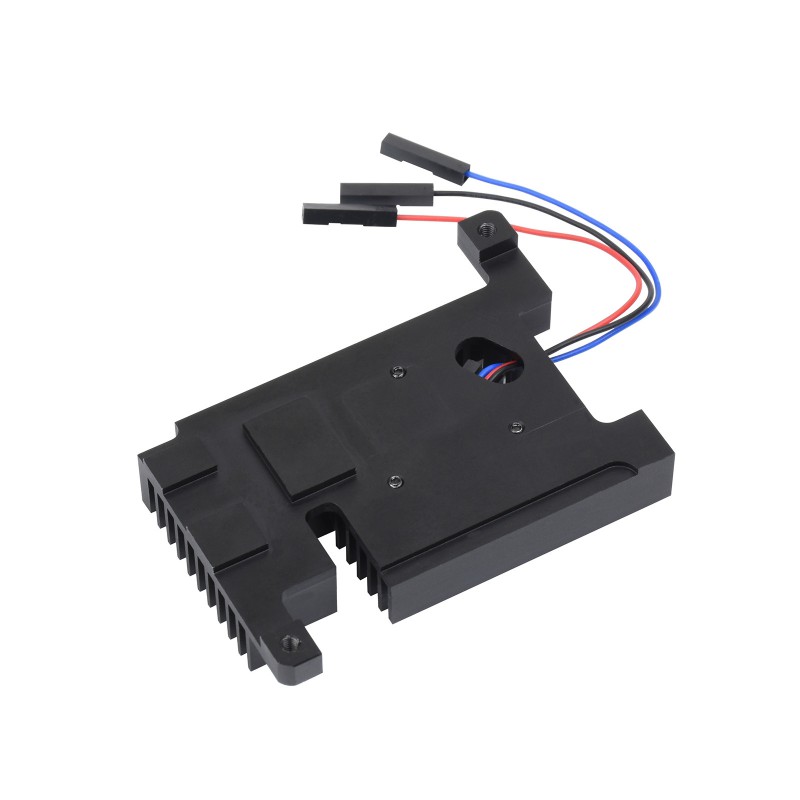

Aluminum Alloy Cooling Fan For Raspberry Pi 4B is a thin and lightweight heat sink, equipped with a 3510 ultra-quiet cooling fan, and the fan supports PWM speed regulation, which is perfectly compatible with Raspberry Pi OS. Other systems must manually write Python or C code to drive the fan speed through PWM.
Features :
- Lightweight and silent
- Support PWM control speed regulation
- Compatible with official system configuration
- Easy to install and fix
- Good heat dissipation effect
Package Includes :
1 x Armor lite heatsink with PWM fan for Raspberry Pi 4B
1 x Screwdriver
2 x M2.5x6mm Screws
4 x Thermal Pad
1 x Instructions
Technical Specifications
| Cable length (mm) | 80±10mm |
|---|---|
| Color | Black |
| Compatibility | Raspberry Pi 4 Model B 1GB/2GB/4GB/8GB Version |
| Dimensions (L x W x H) mm | 64×15 |
| Input Voltage (VDC) | DC 5V input |
| Item Type | Regular Cooling Fan |
| Material | Metal, Plastic |
| Power Rating (W) | 0.3W (5V, 0.6±0.02A) |
| Rated Speed (RPM) | 5500 |
| Rated Voltage (V) | 5 |
| Shipping Dimensions | 6.5 × 5 × 1 cm |
| Shipping Weight | 0.039 kg |
