Electro-Mechanical Relay Modules

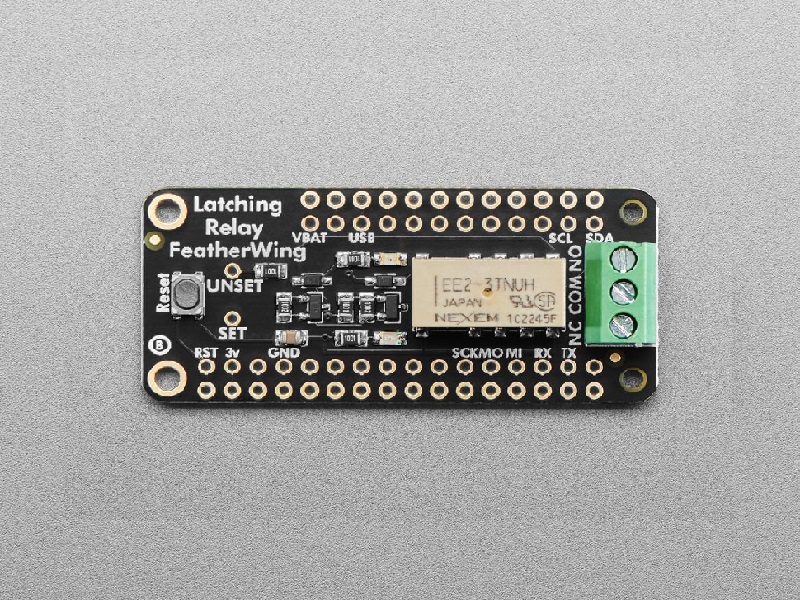

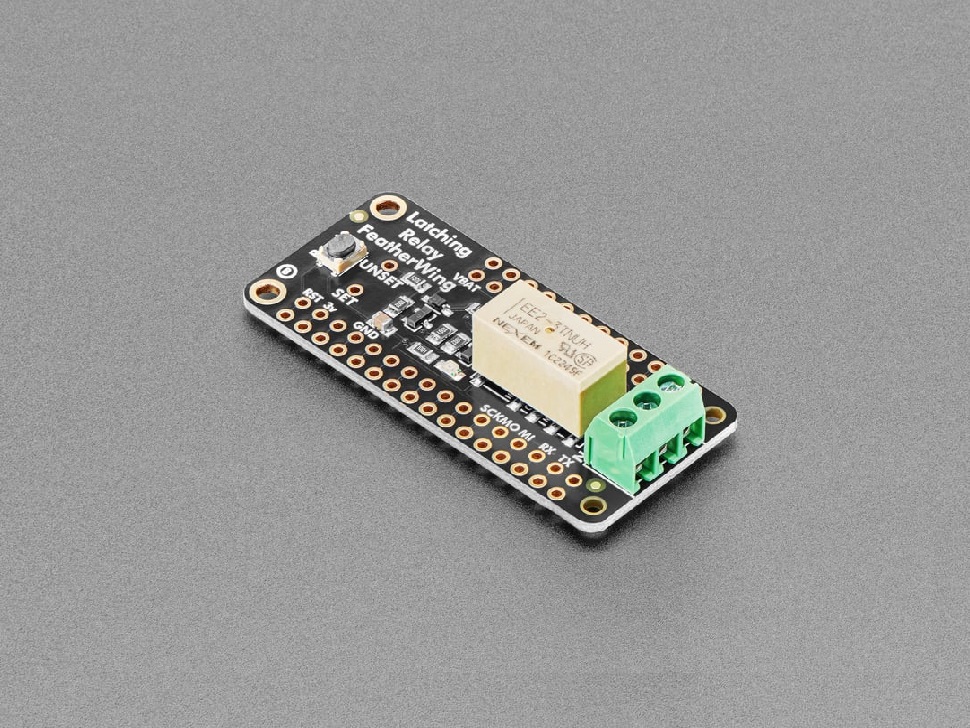

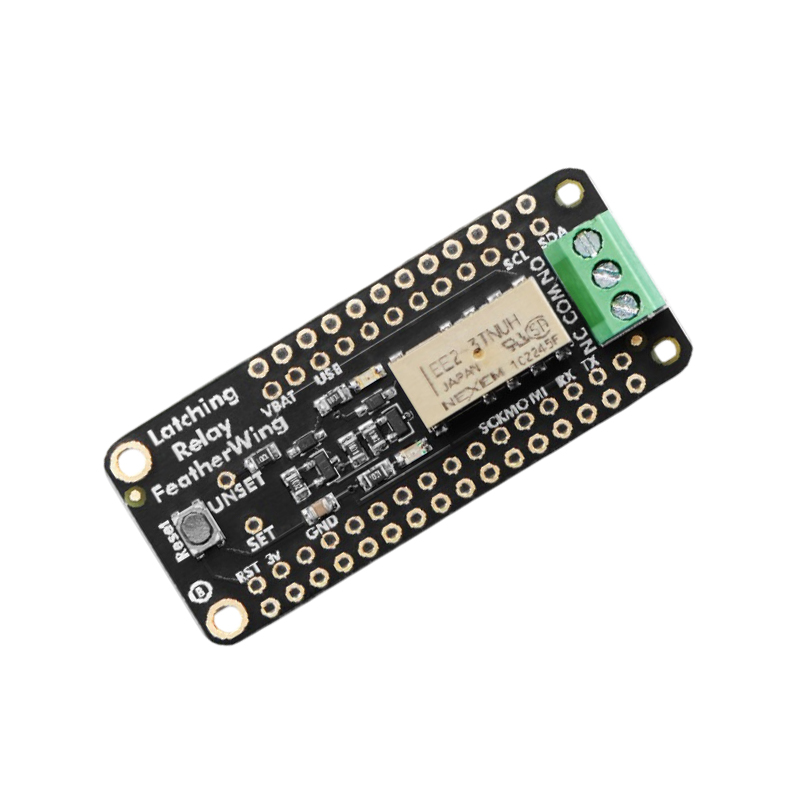

Adafruit Latching Mini Relay FeatherWing
- Power Efficient: Latching relay saves energy by only pulsing pins.
- Easy Integration: Works with Feather boards.
- LED Indicators: Shows relay status.
- Includes Terminal Block: For easy wiring.
- Safety: High-voltage use requires caution.
SKU: Not Found
Brand: Adafruit
Out of stock
₹1207.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Adafruit Latching Mini Relay FeatherWing enables easy control of small appliances (like lamps and fans) using up to 250VAC or DC power, integrated with any Feather board. There are two variants: the Non-Latching Relay (uses a single signal pin) and the Latching Relay (requires two pins—SET and UNSET—for power-efficient operation). The latching relay saves power by not keeping the SET pin high. It can handle 2A of resistive current at 30VDC/40VAC and up to 0.3A at 250VAC. Each board comes with a pre-assembled PCB, terminal block, and requires minimal soldering for setup.
Features:
- Relay Types: Non-latching and latching options.
- Control: Turn devices on/off via Feather board.
- Power Efficiency: Latching relay minimizes power usage.
- Switching Capacity: Up to 2A resistive, 250VAC.
- LED Indicators: Visual feedback for relay status.
- Terminal Block: Easy wiring with included block.
- Easy Integration: Works with any Feather board.
Package Include:
1 x Adafruit Latching Mini Relay FeatherWing
Technical Specifications
| Capacity (Ah) | Up to 2 |
|---|---|
| Item Type | Mini Relay FeatherWing |
| LED Indicator | Shows relay status |
| Shipping Dimensions | 7 × 3 × 2 cm |
| Shipping Weight | 0.02 kg |
