Optocoupler / Light‑Coupled Relay Modules

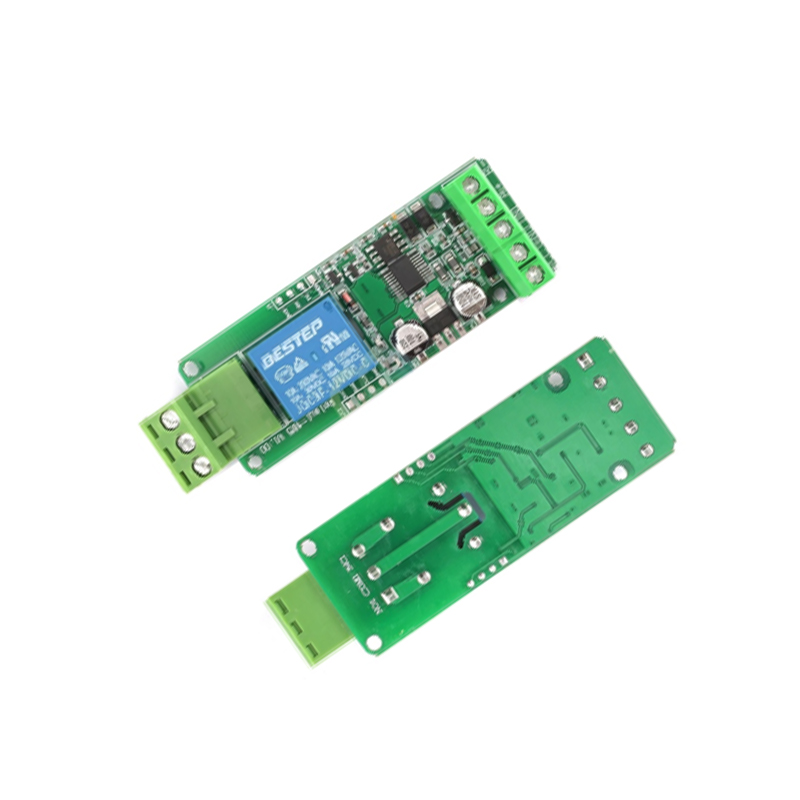

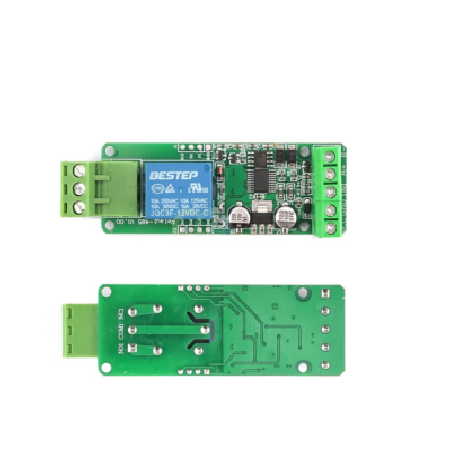

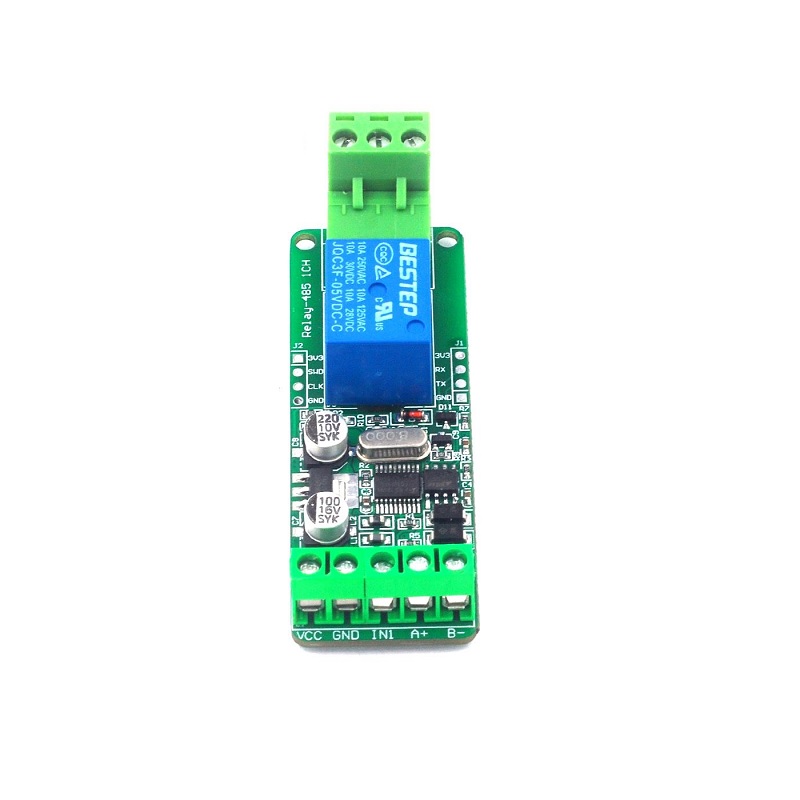

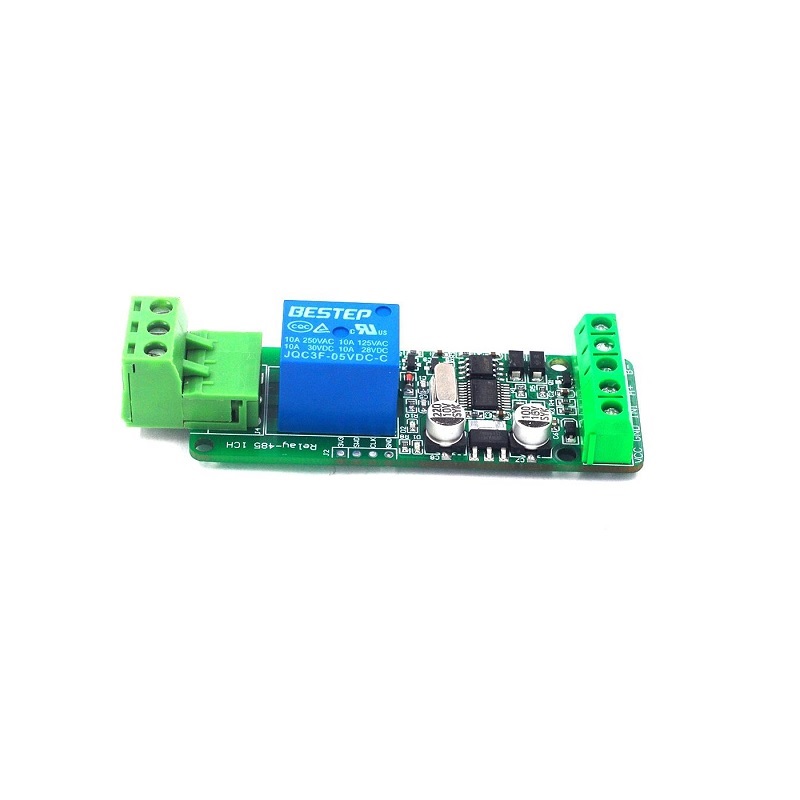

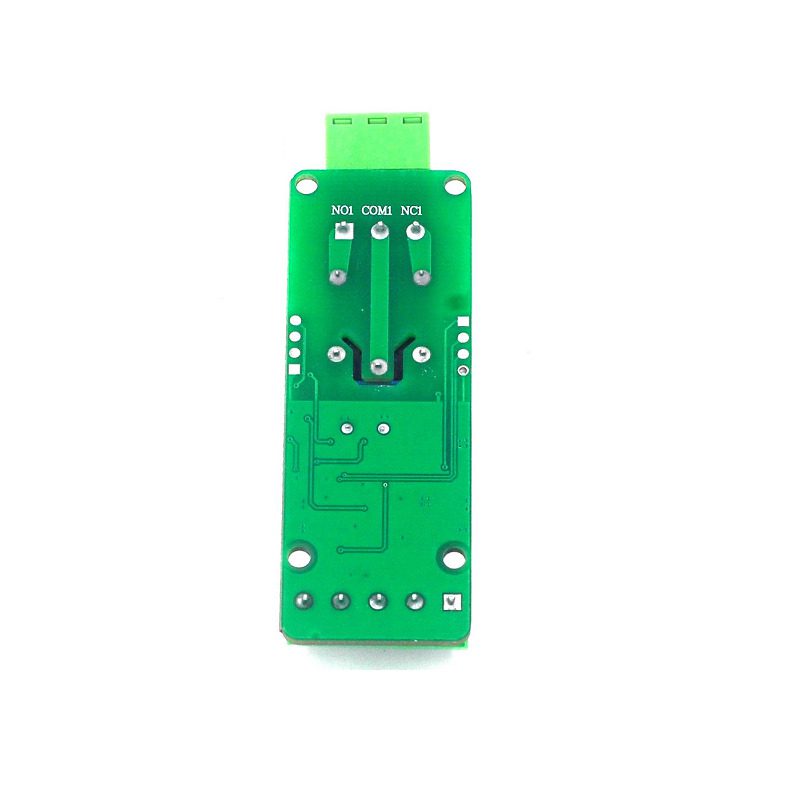

5V Modbus RTU, 1Channel Relay Module, Input Optocoupler, Isolation RS485 MCU for, Arduino
- Product Name:1 Bit Modbus RTU Relay Module
- Working Voltage: DC 5V
- Working Current:1A
- Work Temperature:-25℃~85℃
- Work Humidity:5%~95%RH
SKU: Not Found
Brand: Generic
Out of stock
₹455.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
LC 1 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip, adopt standard MODBUS RTU format RS485 communication protocol, It can realize 1-way input signal detection and 1-way relay output, can be used for digital detection or power control occasions.
Application:
- Supports all MCU control.
- The industrial field.
- PLC control.
- Smart home control.
Features:
- .Modbus serial communication
- Relay switching output
- Convenient AT command control
Package Includes:
1 x 5V Modbus RTU 1Channel Relay Module Input Optocoupler Isolation RS485 MCU for Arduino
Technical Specifications
| Model | Relay Module |
|---|---|
| No. of Channels | 1 |
| Operating Current (A) | 1A |
| Operating humidity | 5%~95%RH |
| Operating Temperature (°C) | -25 to 85 |
| Operating Voltage (VDC) | 5 |
| Shipping Dimensions | 13 × 9 × 1 cm |
| Shipping Weight | 0.11 kg |
