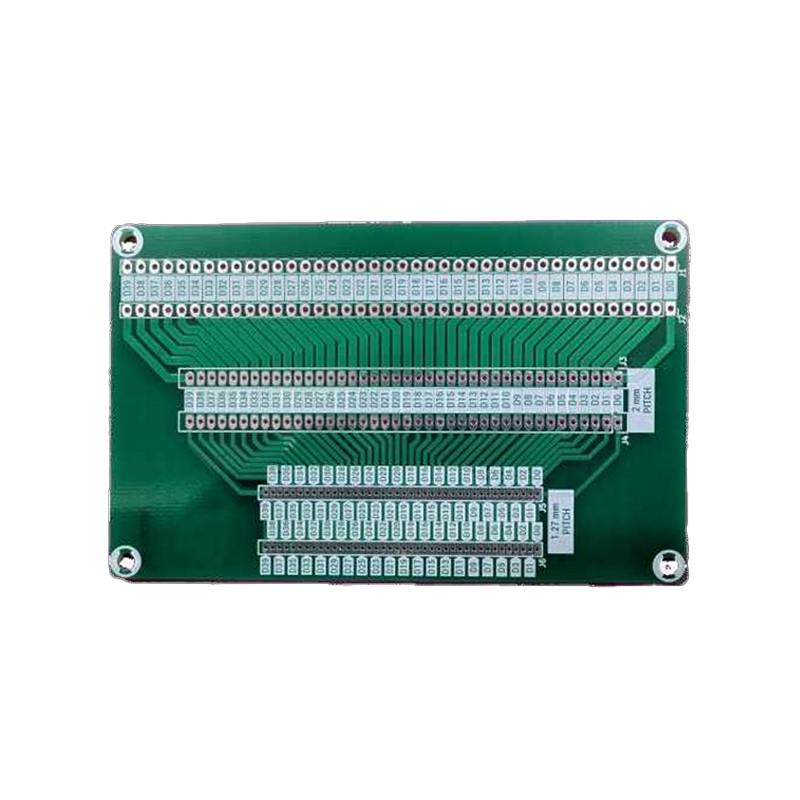

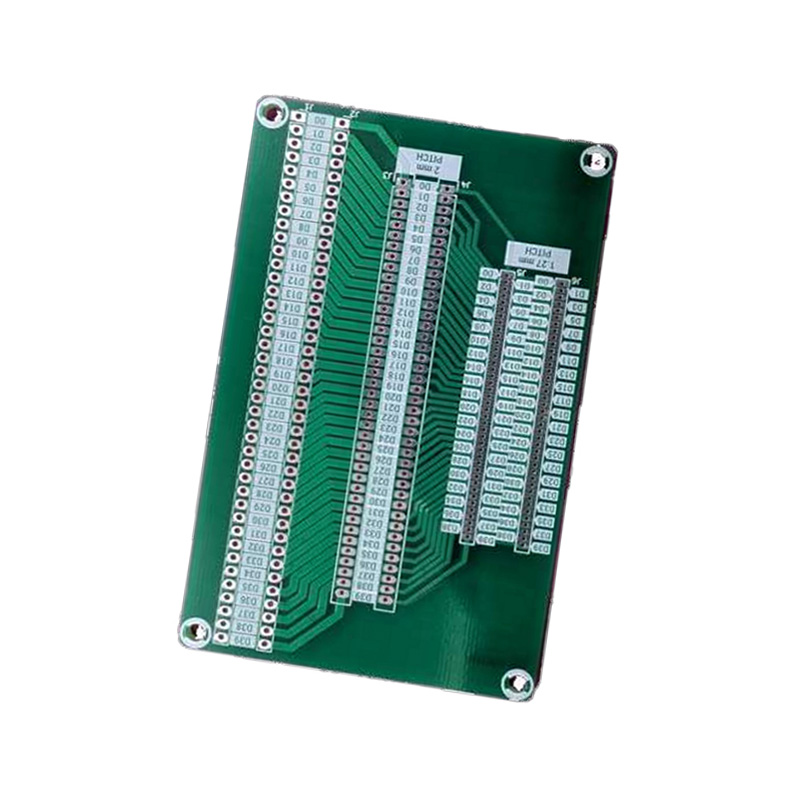

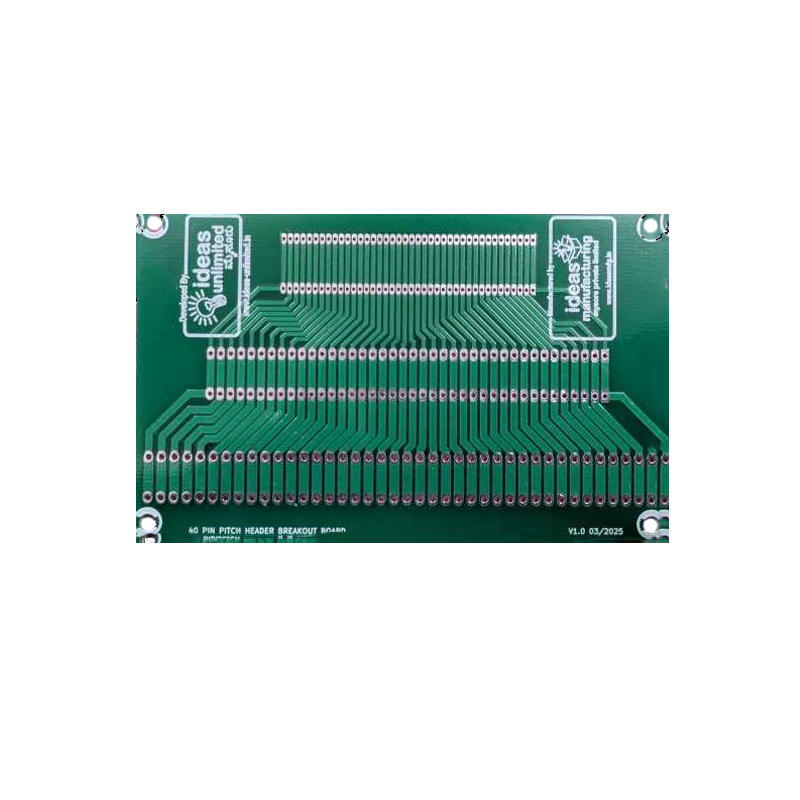

This versatile 40-pin header breakout board is the perfect tool for developers, engineers, and hobbyists working with high-density connectors. Designed for quick prototyping and seamless integration, it offers three different pitch sizes—1.27mm, 2.00mm, and 2.54mm—to easily adapt to various interfacing needs. Each pitch includes two rows of clearly labeled pads for hassle-free connections. Dual-layer PCB design ensures better current handling with strong signal integrity. Whether you’re building a test jig, running a proof of concept (POC), or working on an electronics prototype, this breakout board simplifies your development process with unmatched flexibility and compatibility.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. 40-pin dual-row header breakout in 1.27mm, 2.00mm, and 2.54mm pitch
2. Includes two sets of pads per pitch for maximum flexibility
3. PCB designed with top and bottom layer routing for high current flow
4. Ideal for prototyping, testing, and fast POC development
5. High-density to standard-pitch pin breakout conversion
6. Compact and easy to integrate into any test setup

Package Includes:

1 x Pitch Header Breakout Board

1 x 40 pin – 1.27mm (50 mils)

1 x 40 pin – 2mm (79 mils)

1 x 40 pin – 2.54 mm (100 mils)
