Breakout Board

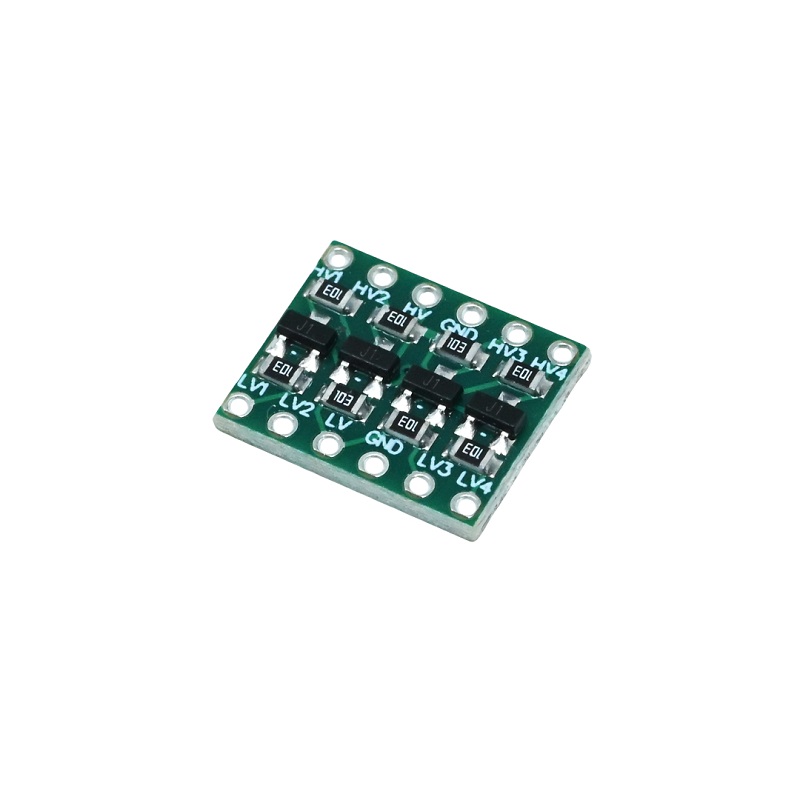

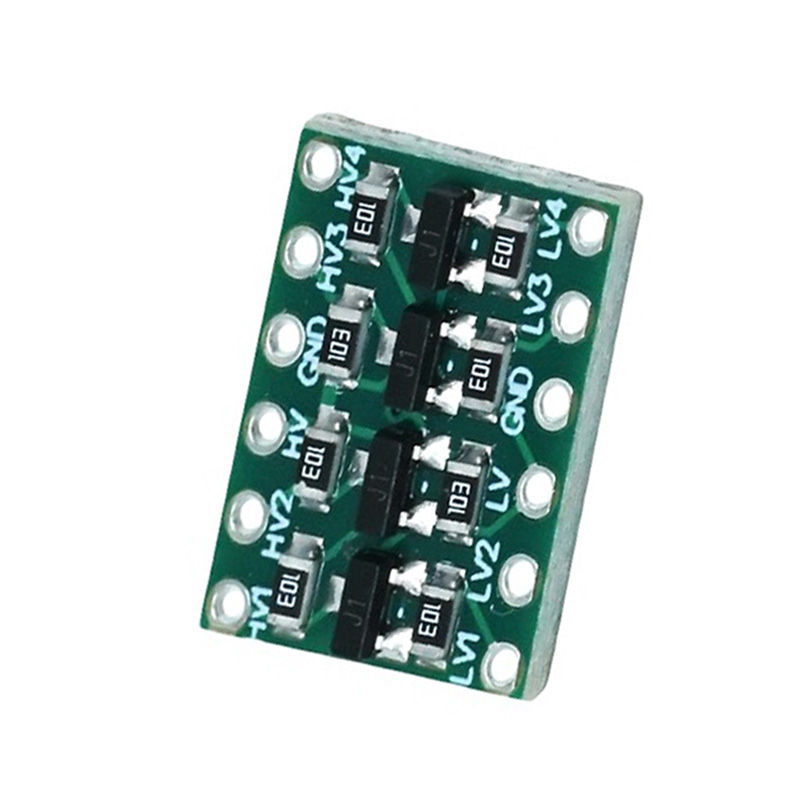

4-Channel 5V-3V Level Shifter Module (Green)
- Bi-directional logic level conversion
- Supports 5V – 3.3V
- Easy HV/LV power input design
- Four-channel level shifting
- Compatible with most microcontrollers
- Small 16.05 × 13.33 mm module
SKU: Not Found
Brand: Generic
Out of stock
₹22.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This bi-directional Logic Level Shifter Module is the perfect solution when you need to safely connect devices working on different voltages. Whether you’re interfacing a 3.3V sensor with a 5V microcontroller or working with even lower voltages like 2.8V or 1.8V, this compact board handles it all with ease. Simply power it with your system’s high-voltage sources, connect ground, and you’re ready to convert signals on four channels simultaneously. Despite its tiny size, it offers reliable, safe, and stable level shifting, making mixed-voltage communication effortless for all your DIY and embedded projects.
Features:
- Supports bi-directional voltage shifting
- Works with 5V, 3.3V devices
- Four fully independent conversion channels
- Simple HV/LV/GND power connection
- Safely steps up and steps down logic levels
- Compact lightweight PCB ideal for embedded systems

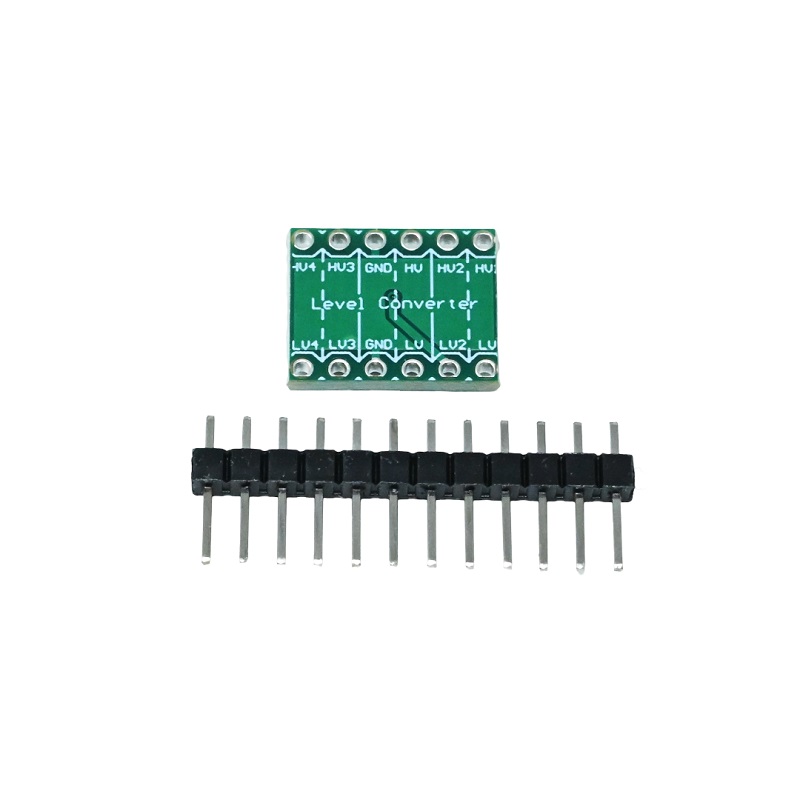

Package Includes:
1 x 4-Channel 5V-3V Level Shifter Module (Green)
1 x Header Pin
Technical Specifications
| Analog Input Pins | GND, HV, LV |
|---|---|
| Item Type | Level Shifter Module |
| Length (mm) | 16.05 |
| No. of Channels | 4 |
| Operating Voltage (V) | 5 – 3 |
| Shipping Dimensions | 5 × 3 × 2 cm |
| Shipping Weight | 0.005 kg |
| Weight (g) | 03 |
| Width (mm) | 13.33 |
