Trimmer Potentiometers
3306P-1-504-Trimpot Potentiometer
- Trimpot Type: Single Turn
- Element Material: Cermet
- Adjustment Type: Top Adjust
- Track Resistance: 500kohm
SKU: Not Found
Brand: Generic
Out of stock
₹34.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

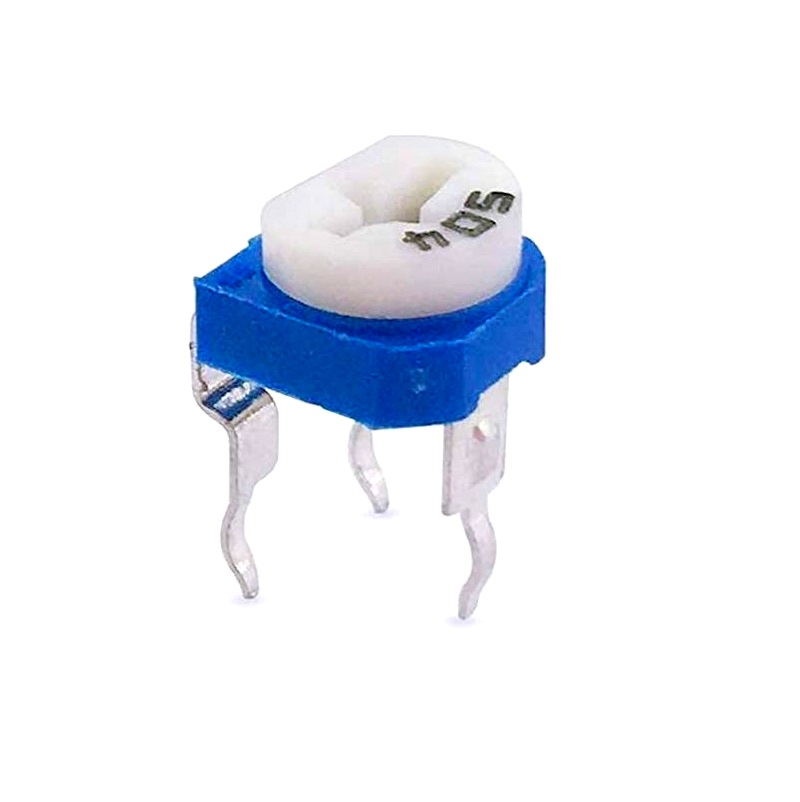

3306P-1-504-Trimpot Potentiometer
Note:
- Product Images are shown for illustrative purposes only and may differ from the actual product.
- For Technical Specifications about the IC go through the Datasheet in the Attachment section.
Package Includes:
1 x 3306P-1-504-Trimpot Potentiometer
Technical Specifications
| Adjustment Type | Top Adjust |
|---|---|
| Element Material | Cermet |
| No. of Turns | 1 |
| Potentiometer Mounting | Through Hole |
| Power Rating | 200mW |
| Product Range | 3306 |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Tolerance (%) | 25 |
| Track Resistance | 500kOhm |
| Trimpot Type | Single Turn |
