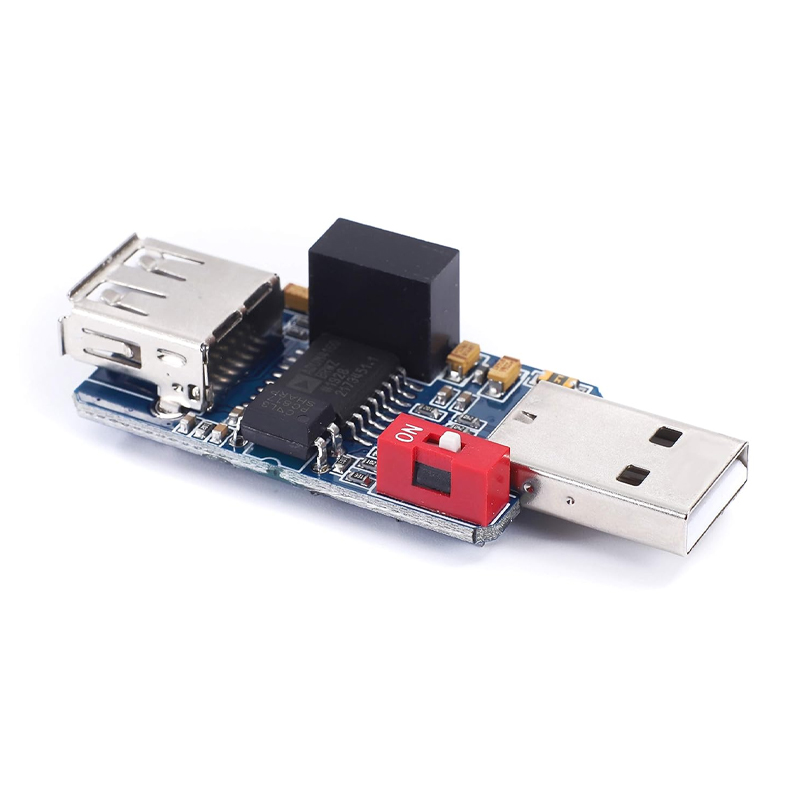

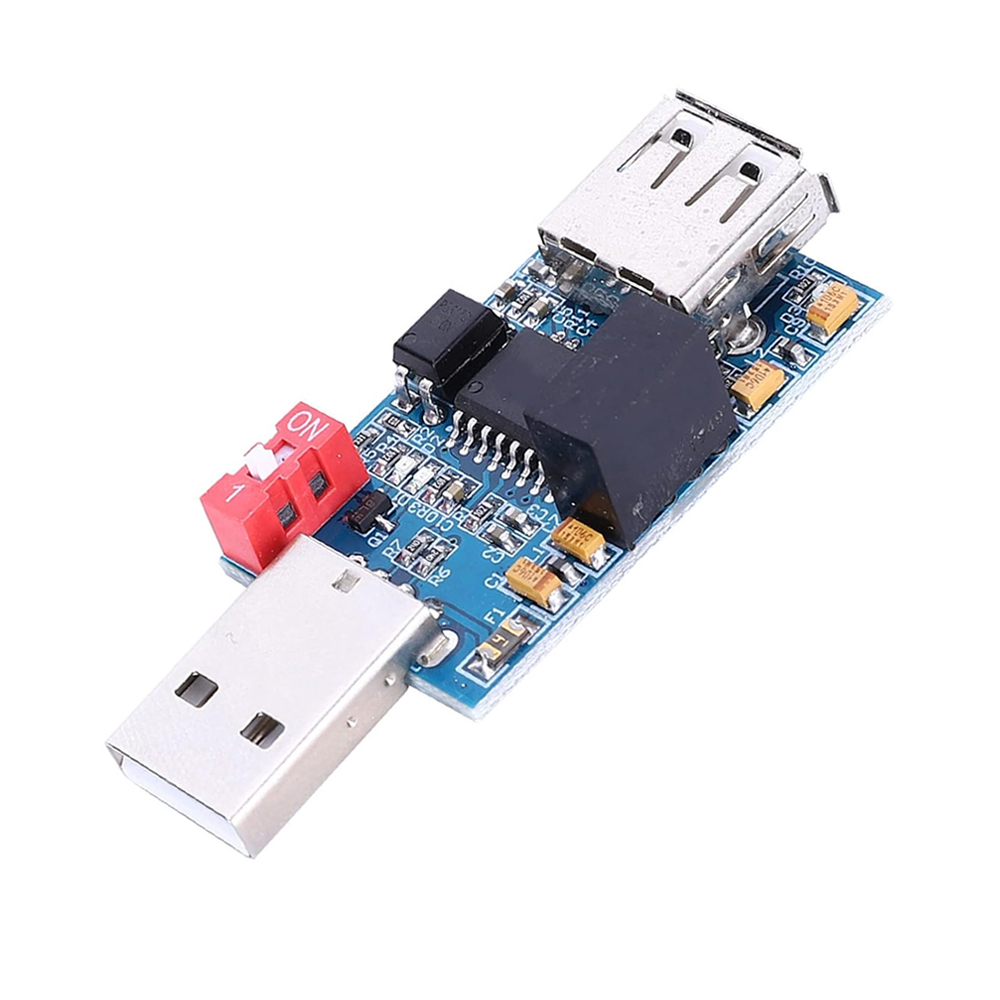

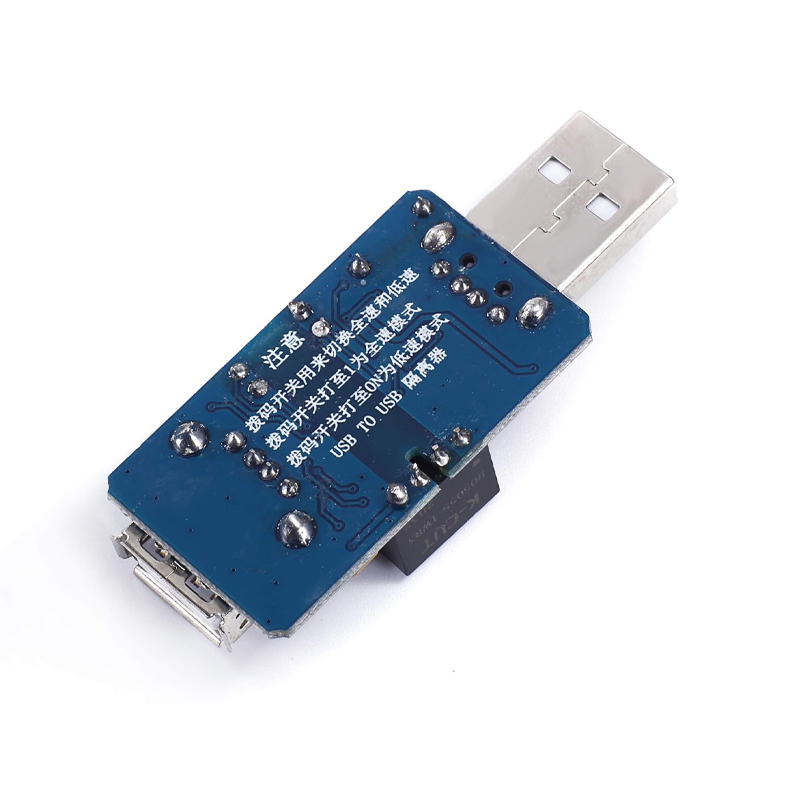

1 Channel USB Isolator ADUM3160 Module
- Isolation Type: Digital USB Signal Isolation
- USB Speed Support: Low-Speed (1.5 Mbps) & Full-Speed (12 Mbps)
- Isolation Voltage: Up to 2.5kV RMS
- Operating Voltage: 5V USB Input
- Operating Temperature Range: -40°C to +85°C
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 1 Channel USB Isolator ADUM3160 Module is a compact and reliable USB isolation board designed to protect your computer and sensitive USB devices from electrical noise, ground loops, and voltage spikes. Built around the ADUM3160 isolation IC from Analog Devices, this module provides full-speed USB signal isolation while maintaining stable and secure data transmission.
This USB isolator module electrically separates the host PC from the connected USB device, significantly reducing the risk of short circuits and ground loop interference. It supports USB full-speed communication (12 Mbps) and is ideal for microcontroller boards, data acquisition systems, and sensitive measurement equipment.
Features:
- Based on ADUM3160 USB Isolation IC
- Provides 1-channel USB signal isolation
- Supports USB Full-Speed (12 Mbps)
- Protects devices from voltage spikes and ground loops
- Compact, ready-to-use module design
- Improves signal integrity in noisy environments
- Plug-and-play operation
Package Includes:
1 x 1 Channel USB Isolator ADUM3160 Module
Technical Specifications
| Height (mm) | 12 |
|---|---|
| Interface Type | USB Type-A to USB Type-B / Micro USB |
| Isolation Type | Digital USB Signal Isolation |
| Isolation Voltage | Up to 2.5kV RMS |
| Item Type | USB Isolator |
| Length (mm) | 46 |
| Model No | ADUM3160 |
| Mounting Type | PCB Module |
| Operating Temperature (°C) | -40 to +85 |
| Operating Voltage (V) | 5 USB Input |
| Shipping Dimensions | 6 × 6 × 2 cm |
| Shipping Weight | 0.015 kg |
| USB Speed | Low-Speed (1.5 Mbps) & Full-Speed (12 Mbps) |
| Weight (g) | 9 |
| Width (mm) | 26 |
