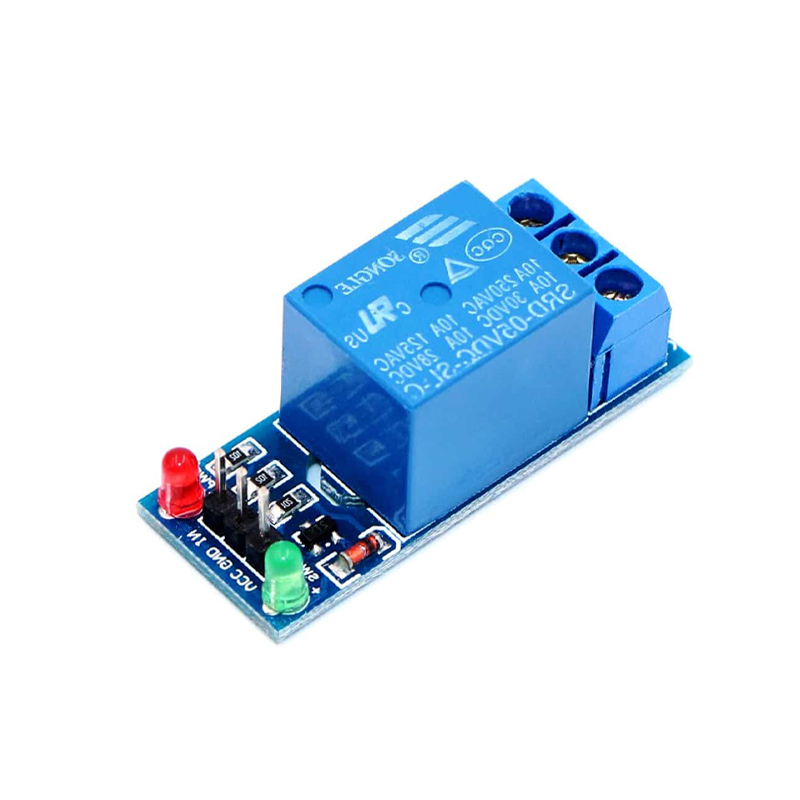

1 Channel 5V Relay Module High Level
- Operating Voltage: 5V DC
- Trigger Signal: HIGH Level (5V)
- Maximum Switching Current: 10A
- Maximum Switching Voltage: 250V AC / 30V DC
- Isolation: Optocoupler-based input protection
SKU: Not Found
Brand: Generic
Out of stock
₹55.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 1 Channel 5V 10A Relay Module is a compact and reliable switching solution designed for microcontroller-based projects and automation systems. Featuring a high-level trigger input, this module activates when a 5V HIGH signal is applied, making it compatible with popular development boards like Arduino, AVR, PIC, and ARM controllers.
Equipped with an optocoupler for electrical isolation, the module protects sensitive control circuits from voltage spikes and electrical noise. A built-in transistor driver ensures stable relay coil operation, while onboard power and status LEDs provide clear visual feedback.
Features:
- High-Level Trigger (Active HIGH) Control
- 5V DC Operating Voltage
- 10A Switching Capacity (AC/DC Loads)
- Optocoupler Isolation for Circuit Protection
- Built-in Transistor Driver for Stable Operation
- High-Impedance Input Pin
- Pull-Down Circuit to Prevent False Triggering
- Power and Relay Status LED Indicators
Package Includes:
1 x 1 Channel 5V Relay Module High Level
Technical Specifications
| Height (mm) | 18 |
|---|---|
| Item Type | Relay Module |
| Length (mm) | 46 |
| Max. Switching Current(A) | 10 |
| Max. Switching Voltage | 250V AC / 30V DC |
| No. of Channels | 1 |
| Operating Voltage (VDC) | 05 |
| Shipping Dimensions | 8 × 4 × 2 cm |
| Shipping Weight | 0.02 kg |
| Trigger Type | HIGH Level |
| Weight (g) | 12 |
| Width (mm) | 18 |
